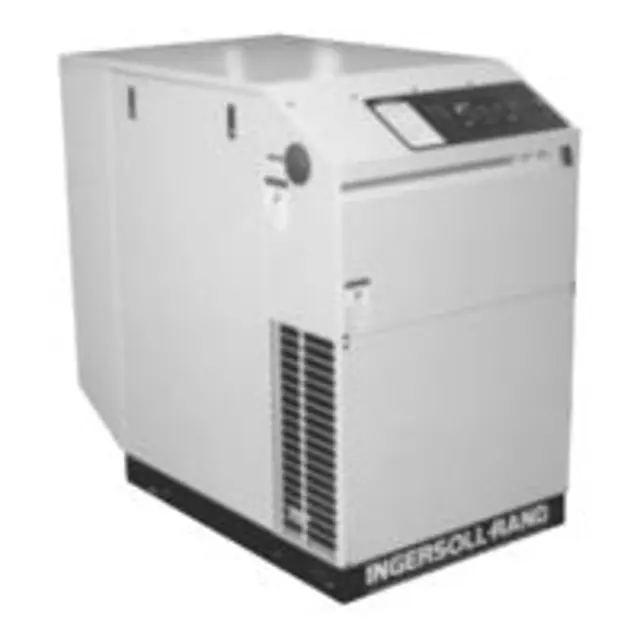

Ingersoll Rand Compressor SSR-HXP25

Warning: This procedure requires trained personnel with PPE!

Improper lubrication can be a cause of motor bearing failure. The quantity of grease added should be carefully controlled.

The smaller motors must be greased with a lesser amount of grease than larger motors.

When regreasing, stop motor. Disconnect power; lock out and tag.

Remove outlet plugs (or spring-loaded grease relief plugs if present). The outlet plug may not be accessible on the fan end of some TEFC motors.

Grease relief along shaft can occur, precluding necessity of removing this plug if inaccessible.

The inlet grease gun fittings and outlet plugs (or spring-loaded reliefs) are located at each end of the motor housing.

The drive end reliefs protrude out the circumference of the lower portion of the end bell near a flange bolt.

The drive end outlet plugs are located just behind the flange in the air intake area at about the 5 or 6 o’clock position.

Inspect sheave grooves for foreign material or rubber build-up

Clean and degrease sheaves before installing new belts

Install new belts in the reverse order of disassembly

Ensure new belt is not pried or forced over the sheave grooves

Apply a force at the center of the sheave span using a tension gauge

Loosen the nut on the pivot bolt located on the left side on the airend if belt tension is incorrect

Warning: This procedure requires trained personnel with PPE!

Is the operating environment clean?

Is the inlet filter changed at prescribed intervals?

Is the operating environment extremely dirty?

Enter the current hours of operation

If the operating environment is dirty, change the filter more frequently

Did you use a suitable device to loosen the old element?

Did you use a drain pan to catch any leakage during removal?

Did you discard the old element?

Warning: Improper lubrication can be a cause of motor bearing failure. The quantity of grease added should be carefully controlled.

The smaller motors must be greased with a lesser amount of grease than larger motors.

When regreasing, stop motor. Disconnect power; lock out and tag.

Remove outlet plugs (or spring-loaded grease relief plugs if present).

The outlet plug may not be accessible on the fan end of some TEFC motors.

Grease relief along shaft can occur, precluding necessity of removing this plug if inaccessible.

The inlet grease gun fittings and outlet plugs (or spring-loaded reliefs) are located at each end of the motor housing.

The drive end reliefs protrude out the circumference of the lower portion of the end bell near a flange bolt.

The drive end outlet plugs are located just behind the flange in the air intake area at about the 5 or 6 o’clock position.

Warning: This procedure requires trained personnel with PPE!

Disconnect tubing at each end of check valve/screen/orifice assembly

Check orifice and clean if required

Press screen retainer orifice from its mating fitting without damaging flared end of fitting or O-ring

Wash screen and housing in safety solvent and blow dry

Press the check valve/screen/orifice into fitting block

Assemble the check valve/screen/orifice assembly to the tubing lines

Sign off on the separator cleaning
