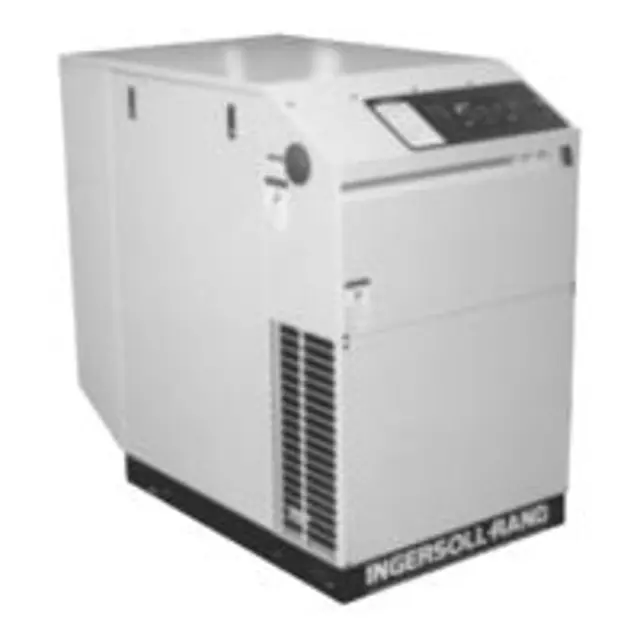

Ingersoll Rand Compressor SSR-HXP20

Warning: This procedure requires trained personnel with PPE!

Improper lubrication can be a cause of motor bearing failure. The quantity of grease added should be carefully controlled.

The smaller motors must be greased with a lesser amount of grease than larger motors.

When regreasing, stop motor. Disconnect power; lock out and tag.

Outlet plugs (or spring-loaded grease relief plugs if present) removed?

The outlet plug may not be accessible on the fan end of some TEFC motors.

Grease relief along shaft can occur, precluding necessity of removing this plug if inaccessible.

The inlet grease gun fittings and outlet plugs (or spring-loaded reliefs) are located at each end of the motor housing.

The drive end reliefs protrude out the circumference of the lower portion of the end bell near a flange bolt.

Warning: This procedure requires trained personnel with PPE!

Clean - Separator scavenge screen and orifice.

Disconnect tubing at each end of check valve/screen/orifice assembly.

Check orifice and clean if required. Use suitable small screwdriver or knife and press screen retainer orifice from its mating fitting. Be careful not to damage flared end of fitting or O-ring.

Wash screen and housing in safety solvent and blow dry.

Press the check valve/screen/orifice into fitting block.

Assemble the check valve/screen/orifice assembly to the tubing lines. The fitting must be re-installed with the screen on the upstream side of the orifice as indicated by the flow arrow.

Sign off on the separator cleaning

Warning: Ensure you are wearing appropriate PPE

Loosen temperature control valve element without exerting excess stress on oil piping

Remove faulty temperature control valve element

Start and load unit to check for proper discharge temperature control

Sign off on the valve element replacement

Run compressor in full load mode and at rated pressure

Enter the display reading from the L.E.D. Table

If warning light is on and display says 'CHG SEPR ELEMENT' then proceed with the following steps

Disconnect the scavenge hose at the tank

Loosen the fitting that holds the scavenge tube into the tank and withdraw the tube assembly

Disconnect blowdown valve from elbow in tank cover

Disconnect tube from fitting on minimum pressure check valve

Loosen tube nut on same tube at aftercooler inlet then swing tube away from tank cover

Remove the bolts that hold the tank cover in position

Warning: This procedure requires trained personnel with PPE!

Is the operating environment clean?

Is the inlet filter changed at prescribed intervals?

Is the operating environment extremely dirty?

Enter the current hours of operation

If the operating environment is dirty, change the filter more frequently.

Upload a photo of the old element

Did you use a drain pan to catch any leakage during removal?

Did you wipe the sealing surface of the filter housing with a clean, lint-free rag?
