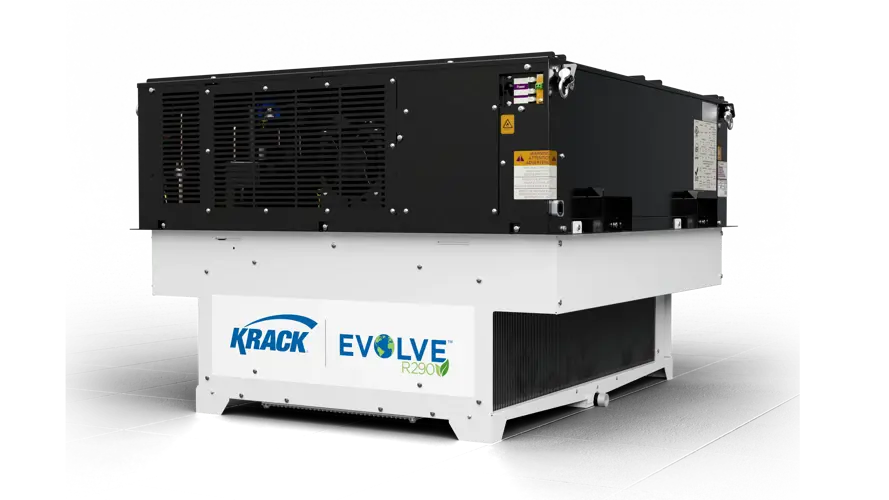

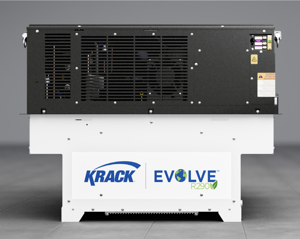

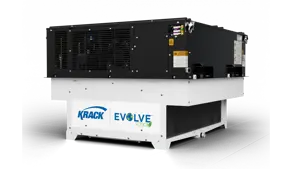

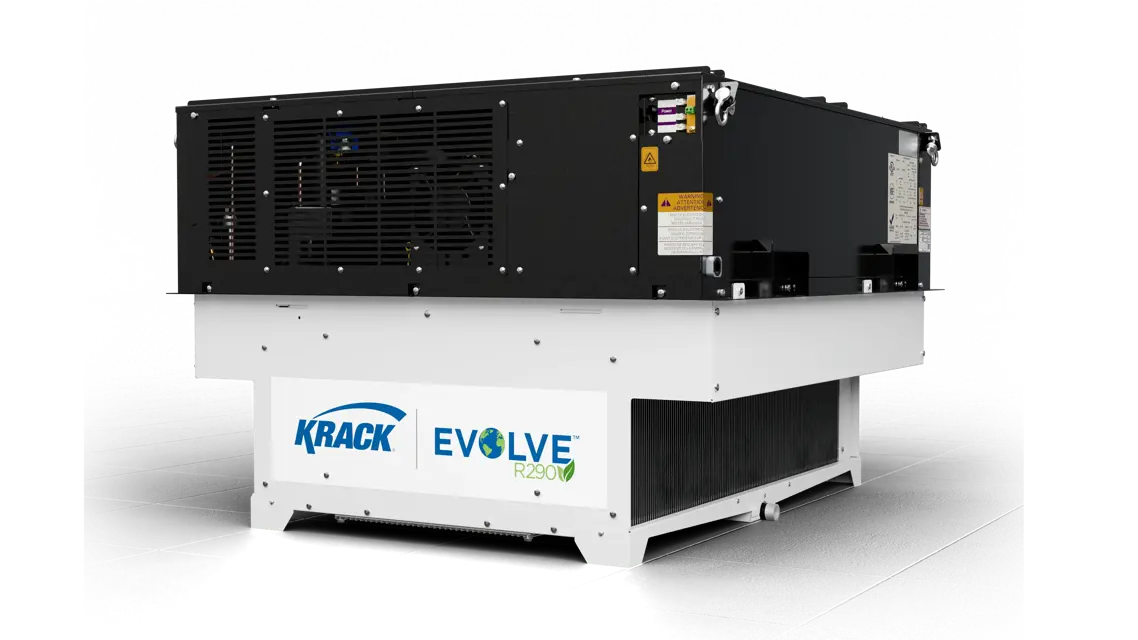

Hussmann Pre-Charged Refrigeration System KL2VW15UGDR

Create an account to install this asset package.

Maintenance Plans for Hussmann Pre-Charged Refrigeration System Model KL2VW15UGDR

Integrate maintenance plans directly into your work orders in MaintainX.

3 Monthly Refrigeration System Maintenance

Technicians must be properly qualified to conduct maintenance in refrigeration systems with flammable refrigerants.

Strictly follow the work instructions:

Maintain a periodic cleaning program for the equipment.

Perform a detailed inspection to identify potential refrigerant leaks.

Determine a specific location to work with the cooling system that is suitable to handle flammable refrigerant equipment.

Monitor the working area using a Hydrocarbon Detector (HC) located at a low level.

When replacing or servicing electrical components, ensure that all components comply with IEC / UL 60079-15.

Component parts replaced with like components with servicing done by trained authorized service personnel.

Expansion valves are assembled in the upper side of the machine and require special attention.

Run this procedure

Drain Pan Service

The drain pan contains drain pan heaters, evaporator fan motors, temperature sensor, and a terminal strip for wiring. The drain pan can be lowered for easy service of these components. The drain pan stays connected to the unit by means of support rods.

Remove fasteners holding fan grille.

Carefully remove temperature sensor and feed through grille. Note location/orientation of sensor prior to removal.

Remove fasteners holding drain pan. Fasteners require 10mm socket. Remove four outer fasteners first and middle two fasteners last.

Sign off on the drain pan service

Run this procedure

3 Monthly Refrigeration System Cleaning

Warning: Risk of Electrical Shock! Carefully follow electrical installation instructions and electrical safety recommendations to avoid risk of electrical shock during installation, use or maintenance.

Warning: Risk of Fire and Explosion! Do not use a vacuum cleaner to clean the product. It has a motor with brushes that generate sparks during normal operation and may form an unsafe condition if there is a flammable mixture.

Warning: Risk of Leakage! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not damage the refrigerant circuit.

Visual observation of the equipment

Is the unit washed down?

If yes, ensure that electrical components such as connection boards, controller, and inverters are not exposed to water.

Check the bottom side of the evaporators

Check the fans and connecting board

Check for dust accumulation

Run this procedure
