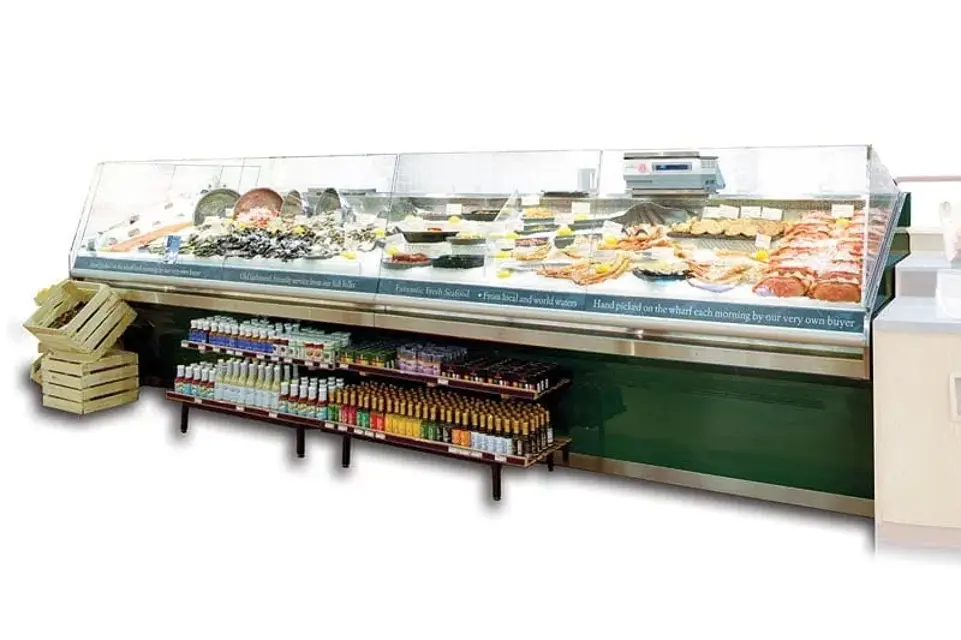

Hussmann Open Fish Sevice Case DSFM-6REM

Warning: This maintenance check requires trained personnel with PPE!

Is the discharge honeycomb clean?

Is there any accumulated dirt in the condenser coil?

Is there any accumulated dirt in the condensate evaporator pan?

Poor circulation of air through the condenser coil will result in poor refrigeration performance.

Is there poor circulation of air through the condenser coil?

Dirt accumulation inside the condensate evaporator pan will reduce the pan’s capacity and affect the efficiency of the heater causing a burned out heater and an overflow of defrost water onto the store floor.

Is there dirt accumulation inside the condensate evaporator pan?

Is the power supply to the equipment reliable?

Warning: Shut off fan before cleaning. Do not use water hoses, chlorinated cleaner, abrasives or steel wool scouring pads, cleaning or sanitizing solution that has an oil base or an ammonia base.

Interior bottom wiped with domestic soap or detergent based cleaners?

Exterior cleaned with water and a mild detergent?

Interior wiped with damp non-abrasive cloth?

Sanitizing solution used to eliminate bacteria?

Visible debris surrounding or on top of the drain location cleaned?

Scrubbed thoroughly, cleaning all surfaces, with soap and hot water?

Rinsed with hot water, but not flooded?

1. The high optical clarity of this glass is possible due to special coatings on the glass surface itself.

2. To preserve this coating and the optical clarity, keep the glass clean. 3. Water is the only solution recommended to be used to clean the non-glare glass.

4. The damage to the glass from improper, caustic solutions is irreparable.

5. In addition to cleaning the glass with the recommended product, there are precautions that should be taken when working and cleaning the inside of the case.

• When cleaning the inside of the cases, we recommend that the glass be fully opened and covered to prevent to prevent solutions from splashing onto the glass and ruining the coating on the inside.;

• Improper cleaning not only accelerates the cleaning cycle but also degrades the quality of this surface.

• Normal daily buffing motions can generated static cling attracting dust to the surface.

• Incorrect cleaning agents or cleaning cloths can cause micro scratching of the surface, causing the plastic to haze over time.;

CAUTION: DO NOT TEAR THE HONEYCOMB

1) Remove the honeycomb assembly as follows: Insert a small Phillips screwdriver behind the rear edge of the honeycomb on the right hand end and gently pull down.

- The bottom of the honeycomb will drop down.

- Continue down the length of the case, lifting the honeycomb out.

2) To clean honeycomb: Mix powdered detergent, in warm water. (5 to 7 Tablespoons per gallon).

- Immerse or spot clean the honeycomb.

- Use care not to damage the cell structure of the honeycomb.

- Rinse thoroughly in clean water. Shake excess water from the honeycomb and dry. (if heat is used, do not exceed 140F dry heat)

3) Install honeycomb by inserting the notched side up against the deflector and press upwards inserting the bottom of the honeycomb into the back ledge.
