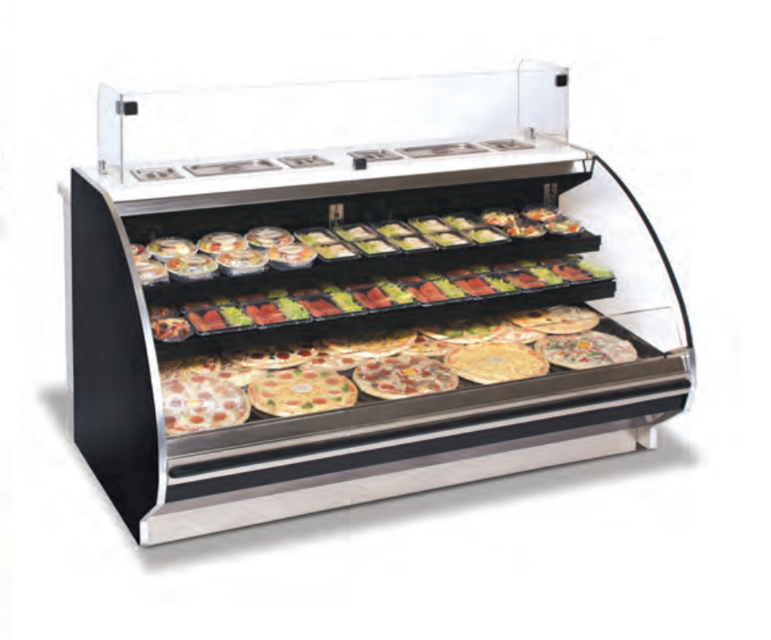

Hussmann Merchandiser E2SPH

Warning: This procedure requires trained personnel with PPE!

Drill with a 2 in. (51 mm) hole saw to drill out the bottom of the drain fitting. Ensure to drill completely through fitting and bottom liner.

Insert coupling into drain fitting. Do not apply PVC or ABS pipe sealer to drain fitting, or the drain fitting may become damaged or crack — Hand tighten.

Install a PVC adapter on the drip trap. Apply primer-sealer to a stub piece of PVC pipe and insert between coupling and adapter.

Sign off on the drain fitting replacement

* NEVER USE SHARP OBJECTS AROUND COILS. Use a soft brush or vacuum brush to clean debris from coils. Do not puncture coils!

• Do not bend fins. Contact an authorized service technician if a coil is punctured, cracked, or otherwise damaged.

• ICE in or on the coil indicates the refrigeration and defrost cycle is not operating properly.

• Contact an authorized service technician to determine the cause of icing and to make adjustments as necesssary. To maintain product integrity, move all product to a cooler until the unit has returned to normal operating temperatures.

• Clean bumpers with household spray cleaner.

• To remove marks from a ballpoint pen, use hair spray or dry erase cleaner.

3. Removing Scratchers From Bumper

Warning: Always use non-abrasive cleaning materials and polish with grain of the steel.

Used warm water or mild detergent for cleaning?

Used alkaline chlorinated or non-chlorine containing cleaners?

Avoided cleaners containing salts?

Cleaned frequently to avoid build-up of hard, stubborn stains?

Used a stainless steel cleaning solution periodically?

Rinsed and wiped dry immediately after cleaning?

Avoided hydrochloric acid (muratic acid) on stainless steel?

Warning: Ensure power to the merchandiser is turned off before starting the procedure

Check if there are two rows of canopy LED lights

Check if the front and rear light bars are labeled correctly

Check if the light bars are attached to the lamp panel using clips

Enter the part number of the clip

Check if the clips are color coded

Check if the light bars are connected through a two-conductor connector

Check if the LED power source is 24-volts

Check if the LED shelf light bars are held in place using a magnetic surface

Warning: LOCK OUT / TAG OUT — To avoid serious injury or death from electrical shock, always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as doors, lights, fans, heaters, and thermostats.

Disconnect fan from wiring harness

Lift fan plenum and remove screws holding bottom of motor to fan basket

Reconnect fan to wiring harness
