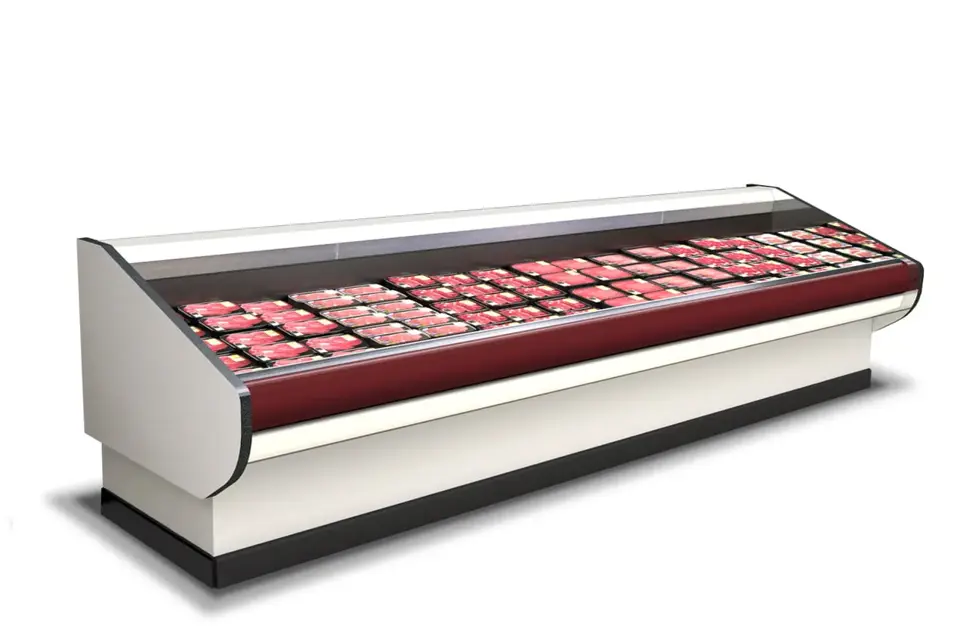

Hussmann Merchandiser E1

Warning: Always use non-abrasive cleaning materials and polish with grain of the steel.

Used warm water or mild detergent for cleaning?

Used alkaline chlorinated or non-chlorine containing cleaners?

Avoided cleaners containing salts?

Cleaned frequently to avoid build-up of hard, stubborn stains?

Used a stainless steel cleaning solution periodically?

Rinsed and wiped dry immediately after cleaning?

Avoided hydrochloric acid (muratic acid) on stainless steel?

Warning: This procedure requires trained personnel with PPE!

Drill with a 2 in. (51 mm) hole saw to drill out the bottom of the drain fitting. Be sure to drill completely through fitting and bottom liner.

Insert coupling into drain fitting. Do not apply PVC or ABS pipe sealer to drain fitting, or the drain fitting may become damaged or crack — Hand tighten.

Install a PVC adapter on the drip trap. Apply primer-sealer to a stub piece of PVC pipe and insert between coupling and adapter.

Sign off on the drain fitting replacement

The LED power supplies for canopy lights and shelf lights are located at the top of the merchandiser inside the canopy.

Disconnect power to the merchandiser

Remove light bars from the canopy

Remove the screws that secure the lamp panel

Grasp the lamp panel at its front edge and carefully pull down. It will swing freely from its hinged rear edge

Replace power supply and reassemble parts in reverse order

Sign off on the LED power supplies replacement

Warning: This maintenance check requires trained personnel with PPE!

Inspect all lamp sockets and plug–receptacle connections for signs of arcing

All unused receptacles have their close-off covers securely installed

Proper cleaning procedures are followed

Lights and fans are turned off when a case is cleaned

Case is allowed to dry before turning power back on

Pressure nozzle is not used to clean inside a case

Number of degraded or failed tubes replaced

Cost of replacing degraded bulbs

• Fluorescent lamps are furnished with moisture resistant lamp holders, shields and end caps.

• Whenever a fluorescent lamp is replaced, be certain to reinstall the lamp shields and end caps.

• The switch in the canopy operates both the canopy and the shelf lamps. The rail lamp switch is located on the rail.

• Inspect all lamp sockets and plug–receptacle connections for signs of arcing. Replace any component that shows signs of arcing.

• Make sure all unused receptacles have their close-off covers securely attached.

2. REPLACING LAMP HOLDERS AND END CAPS

• The Impact lamp holder is designed to snap into the sheet metal of the case. The lamp holder has a locking ‘nub’ which fits inside the groove of specially designed end caps.

CAUTION! Fluorescent lamps contain mercury vapor. Mercury exposure at high levels can harm the brain, heart, kidneys, lungs, and immune system of people of all ages. Do not break or puncture fluorescent lamps. Dispose of, or store, all fluorescent lamps in accordance with Federal (40 CFR 273), State, and local hazardous waste requirements.
