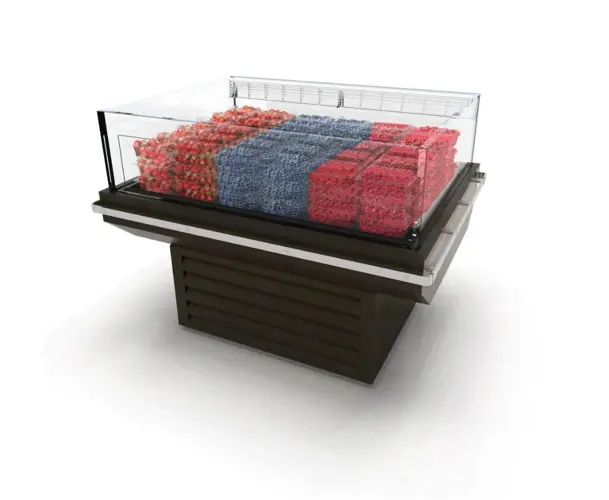

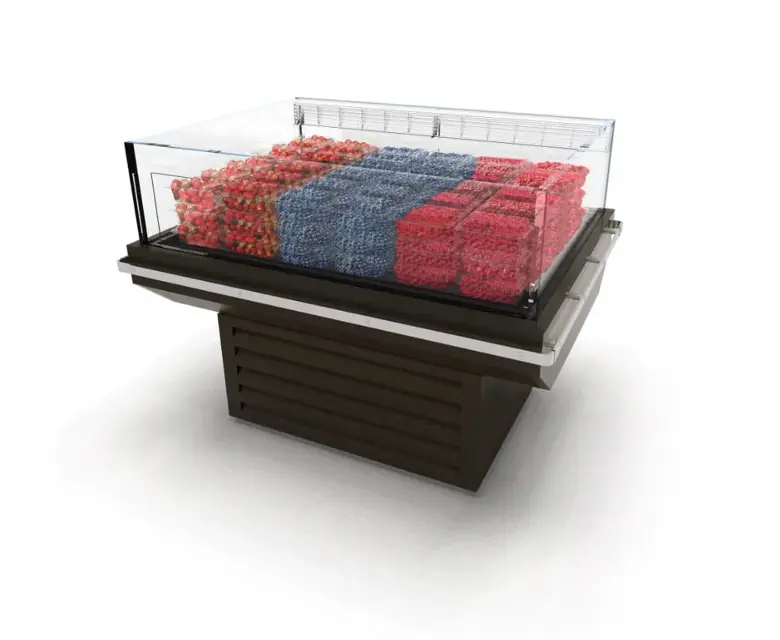

Hussmann Low and Medium Temperature Self Contained Island Merchandiser ISFGG-5R

Warning: Always wear gloves and protective eye wear when cleaning near sharp coil fins and dust particles.

Check if the condenser coils are clean

If the condenser coils are dirty, proceed with the following steps

Use a vacuum cleaner with a wand attachment to clean the coils

Use a soft (non-metallic) brush to remove dirt and debris

Ensure not to bend coil fins during the cleaning process

Sign off on the monthly coils cleaning

CAUTION! Evaporation Pan is Hot! and poses risk of bodily injury - Always Wear glove and protective eye wear when servicing. Turn off evaporation pan heater, and allow pan to cool.

PRECAUTION! CLEANING PRECAUTIONS

When Cleaning, avoid the following

The condensate water outlet for self contained models empties into a limited capacity evaporation pan.

Debris or dirt accumulation inside the condensate evaporation pan or on the heater coil will reduce the pan's evaporation capacity and cause premature heater failure.

The evaporation pan waste water will overflow and spill onto the floor if the heater is not properly operating.

Remove accumulated debris from the evaporation pan.

Wipe down heater coil with a cloth and warm water. Be sure to remove any dirt, debris or liquids from the heater coil.

Water introduced during cleaning will cause the evaporation pan to overflow.

CAUTION! DO NOT FLOOD! Use only enough water necessary to clean surface. Water must not drip down the case! Never use ammonia based cleansers, abrasive cleansers, or scouring pads.

Used non-abrasive cleaning materials and polished with grain of the steel?

Used warm water or added a mild detergent to the water and applied with a cloth? Wiped rails dry after wetting?

Did you avoid cleaners containing salts?

Sign off on the cleaning procedure

Warning: Be careful not to damage the louvers during cleaning.

If the louvers are dirty, proceed with the following steps.

Upload a photo of the dirty louvers before cleaning.

Were you able to remove the honeycomb with a flat object?

Upload a photo of the removed honeycomb.

Were you able to clean and dry the air louvers?

Upload a photo of the cleaned louvers.

Were you able to replace the louvers in reverse order?

• Long life and satisfactory performance of any equipment is dependent upon the care it receives. To ensure long life, proper sanitation and minimum maintenance costs, these merchandisers should be thoroughly cleaned, all debris removed and the interiors washed down, weekly.

• The exterior surfaces must be cleaned with a mild detergent and warm water to protect and maintain their attractive finish. NEVER USE ABRASIVE CLEANSERS OR SCOURING PADS.

• The interior surfaces may be cleaned with most domestic detergents, ammonia based cleaners and sanitizing solutions with no harm to the surface. Self contained models empty into a limited capacity evaporation pan, which will overflow if excess water is used in cleaning.

• Abrasive cleansers and scouring pads, as these will mar the finish.

• Coarse paper towels on coated glass.

• Ammonia-based cleaners on acrylic parts.
