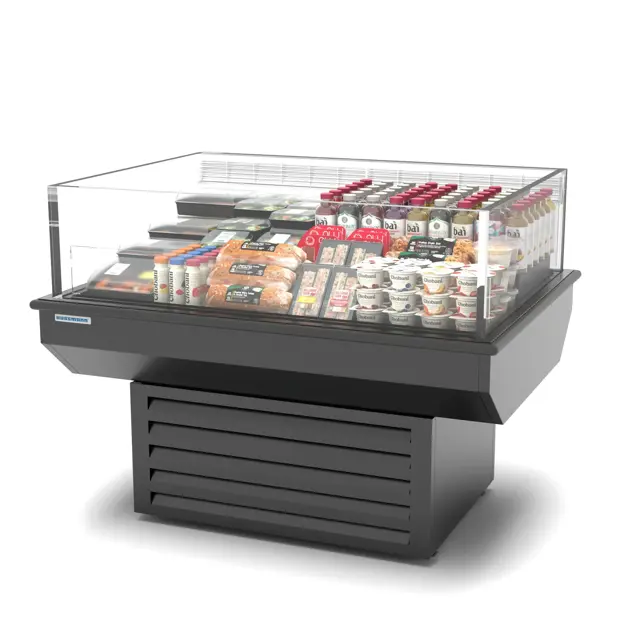

Hussmann Hussmann Low and Medium Temperature Self Contained Island Merchandiser ISFGG-5D ISFGG-5D

Warning: Always wear gloves and protective eye wear when cleaning near sharp coil fins and dust particles.

Check if the condenser coils are clean

If the condenser coils are dirty, proceed with the following steps

Use a vacuum cleaner with a wand attachment to clean the coils

Use a soft (non-metallic) brush to remove dirt and debris

Ensure not to bend coil fins during the cleaning process

Sign off on the monthly coils cleaning

• Should it ever be necessary to service or replace the fan motors or blades be certain that the fan blades are reinstalled correctly.

• THE BLADES MUST BE INSTALLED WITH RAISED EMBOSSING (PART NUMBER ON PLASTIC BLADES) POSITIONED AS INDICATED ON THE PARTS LIST.

1. Remove product and place in a refrigerated area. Turn off power to the merchandiser.

3. Disconnect fan from wiring harness.

5. Lift fan plenum and remove screws holding bottom of motor to fan basket.

6. Replace fan motor and blade.

WARNING! LOCK OUT / TAG OUT - To avoid serious injury or death from electrical shock, always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as doors, lights, fans, heaters, and thermostats.

WARNING! SHUT FANS OFF DURING CLEANING PROCESS.

Plenum properly lowered into position after cleaning

Was the cleaning process successful without any product loss?

Sign off on the cleaning process

WARNING! Do NOT use HOT water on Cold glass Surfaces. This can cause the glass to shatter and could result in personal injury. Allow glass fronts, to warm before applying hot water.

Use steel wool to smooth out the surface area of the bumper

Apply vinyl or car wax and polish surface for a smooth glossy finish

Sign off on the scratch removal process

CAUTION! DO NOT FLOOD! Use only enough water necessary to clean surface. Water must not drip down the case! Never use ammonia based cleansers, abrasive cleansers, or scouring pads.

Use non-abrasive cleaning materials, and always polish with grain of the steel.

Use warm water or add a mild detergent to the water and apply with a cloth. Always wipe rails dry after wetting.

Use alkaline chlorinated or non-chlorine containing cleaners such as window cleaners and mild detergents.

Do not use cleaners containing salts as this may cause pitting and rusting of the stainless steel finish.

Sign off on the cleaning procedure
