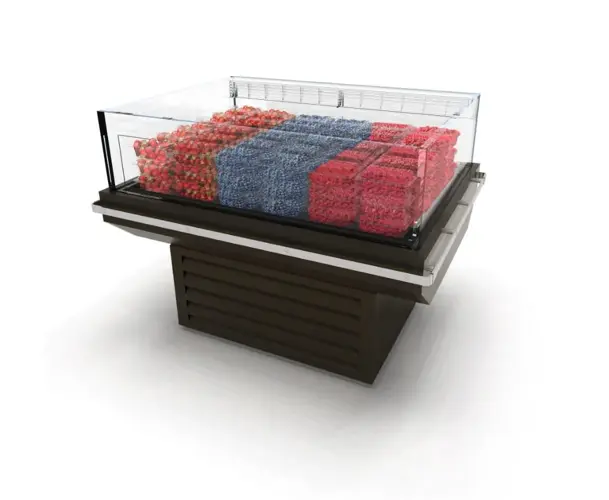

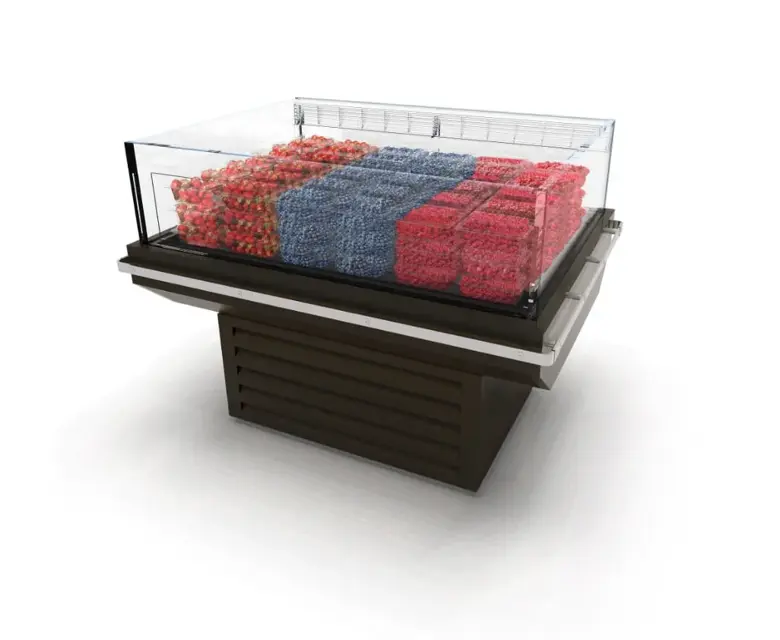

Hussmann Low and Medium Temperature Self Contained Island Merchandiser ISFGG-10R

CAUTION! DO NOT FLOOD! Use only enough water necessary to clean surface. Water must not drip down the case! Never use ammonia based cleansers, abrasive cleansers, or scouring pads.

Used non-abrasive cleaning materials and polished with grain of the steel?

Used warm water or added a mild detergent to the water and applied with a cloth? Wiped rails dry after wetting?

Select the type of cleaner used

Did you avoid using cleaners containing salts?

Sign off on the cleaning procedure

• Long life and satisfactory performance of any equipment is dependent upon the care it receives. To ensure long life, proper sanitation and minimum maintenance costs, these merchandisers should be thoroughly cleaned, all debris removed and the interiors washed down, weekly.

• The exterior surfaces must be cleaned with a mild detergent and warm water to protect and maintain their attractive finish. NEVER USE ABRASIVE CLEANSERS OR SCOURING PADS.

• The interior surfaces may be cleaned with most domestic detergents, ammonia based cleaners and sanitizing solutions with no harm to the surface. Self contained models empty into a limited capacity evaporation pan, which will overflow if excess water is used in cleaning.

• Abrasive cleansers and scouring pads, as these will mar the finish.

• Coarse paper towels on coated glass.

• Ammonia-based cleaners on acrylic parts.

Warning: This procedure requires trained personnel with PPE!

Used Prestolite torch only with number 6 tip?

Used separate set of stainless steel brushes only on aluminum?

Brushed tinned surface under heat, thoroughly filling the open pores around leak?

Repaired leak letting aluminum melt solder, not the torch?

WARNING! LOCK OUT / TAG OUT - To avoid serious injury or death from electrical shock, always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component. This includes, but is not limited to, such items as doors, lights, fans, heaters, and thermostats.

WARNING! SHUT FANS OFF DURING CLEANING PROCESS.

Plenum properly lowered into position after cleaning

Sign off on the cleaning process

Warning: Always wear gloves and protective eye wear when cleaning near sharp coil fins and dust particles.

Check if the condenser coils are clean

If the condenser coils are dirty, proceed with the following steps

Use a vacuum cleaner with a wand attachment to remove dirt and debris

Use a soft (non-metallic) brush to remove remaining dirt and debris

Ensure not to bend coil fins during the cleaning process

Sign off on the monthly coils cleaning
