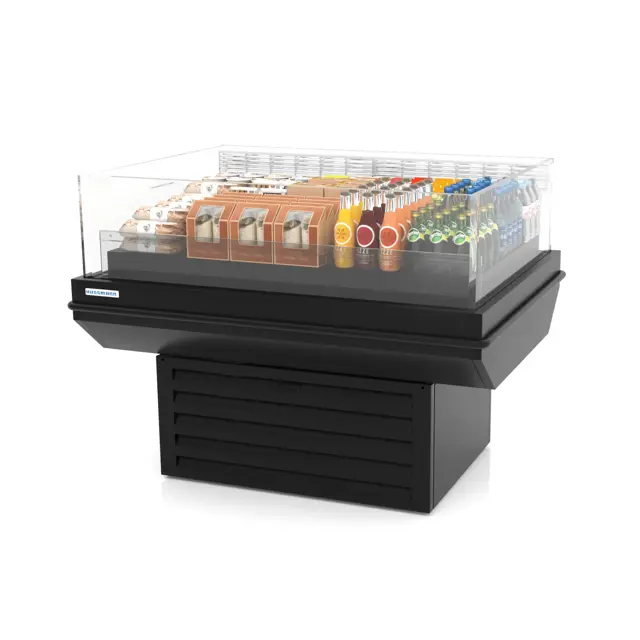

Hussmann Low and Medium Temperature Self Contained Island Merchandiser ISFGG-10G

Warning: Lock out / Tag out - To avoid serious injury or death from electrical shock, always disconnect the electrical power at the main disconnect when servicing or replacing any electrical component.

Warning: Product will be degraded and may spoil if allowed to sit in a non-refrigerated area.

Fan blades reinstalled correctly with raised embossing positioned as indicated on the parts list?

Product removed and placed in a refrigerated area?

Power to the merchandiser turned off?

Fan disconnected from wiring harness?

Fan plenum lifted and screws holding bottom of motor to fan basket removed?

• Long life and satisfactory performance of any equipment is dependent upon the care it receives. To ensure long life, proper sanitation and minimum maintenance costs, these merchandisers should be thoroughly cleaned, all debris removed and the interiors washed down, weekly.

• The exterior surfaces must be cleaned with a mild detergent and warm water to protect and maintain their attractive finish. NEVER USE ABRASIVE CLEANSERS OR SCOURING PADS.

• The interior surfaces may be cleaned with most domestic detergents, ammonia based cleaners and sanitizing solutions with no harm to the surface. Self contained models empty into a limited capacity evaporation pan, which will overflow if excess water is used in cleaning.

• Abrasive cleansers and scouring pads, as these will mar the finish.

• Coarse paper towels on coated glass.

• Ammonia-based cleaners on acrylic parts.

Warning: This procedure requires trained personnel with PPE!

Used Prestolite torch only with number 6 tip?

Used separate set of stainless steel brushes only on aluminum?

Tinned surface brushed under heat, thoroughly filling the open pores around leak?

Leak repaired? Let aluminum melt solder, not the torch.

Warning: Be careful not to damage the louvers during cleaning.

If the louvers are dirty, proceed with the following steps.

Were you able to remove the honeycomb with a flat object?

Upload a photo of the removed honeycomb.

Were you able to clean and dry the air louvers?

Upload a photo of the cleaned and dried air louvers.

Were you able to replace the honeycomb in reverse order?

Upload a photo of the replaced honeycomb.

Warning: Always wear gloves and protective eye wear when cleaning near sharp coil fins and dust particles.

Check if the condenser coils are clean

If the condenser coils are dirty, proceed with the following steps

Use a vacuum cleaner with a wand attachment to clean the coils

Use a soft (non-metallic) brush to remove dirt and debris

Ensure not to bend coil fins during the cleaning process

Sign off on the monthly coils cleaning
