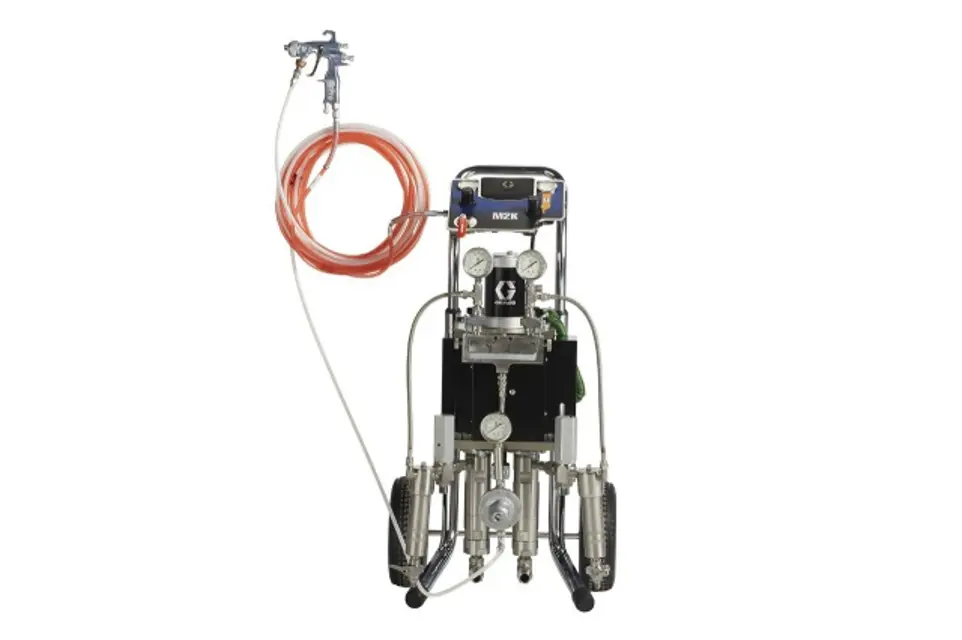

Graco Spray Package 24V883
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Graco Spray Package 24V883
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Graco Spray Package 24V883
Create an account to install this asset package.
Maintenance Plans for Graco Spray Package Model 24V883
Integrate maintenance plans directly into your work orders in MaintainX.
1 Daily Manual Lubrication
Daily Manual Lubrication Procedure
Disconnect the regulator
Place about 15 drops of light machine oil in the motor air inlet
Reconnect the regulator
Turn on the air supply to blow oil into the motor
Sign off on the daily manual lubrication
1 Daily Wet Cup Inspection
Wet Cup Maintenance
Is the wet cup one-half full with Graco Throat Seal Liquid (TSL)?
Enter the current level of Graco Throat Seal Liquid (TSL) in the wet cup
Is the level of Graco Throat Seal Liquid (TSL) maintained daily?
Sign off on the daily wet cup inspection
Spray Package Maintenance
Care of the Pump
NOTICE: Do not allow the supply containers to run dry of the fluid being pumped.
Supply container is not dry
Throat packing reservoirs one-half filled with TSL
Pot life limit observed
System flushed when necessary
Fluid manufacturer’s instructions for fluid shelf life followed
System flushed with a compatible solvent
Pump flushed at higher cycle rates for better cleaning action
