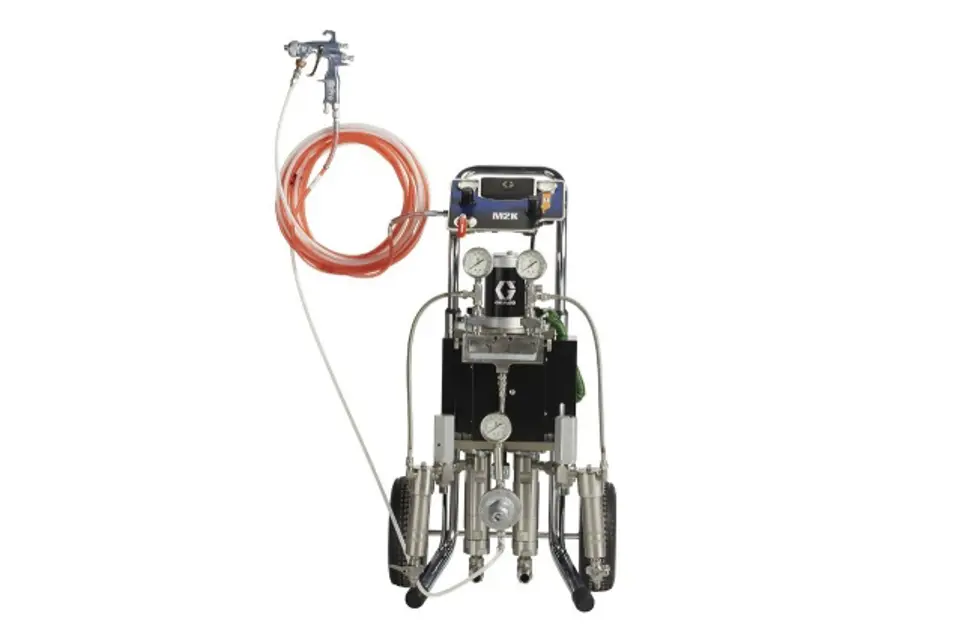

Graco Spray Package 24V870

Is the wet cup one-half full with Graco Throat Seal Liquid (TSL)?

Enter the current level of Graco Throat Seal Liquid (TSL) in the wet cup

Is the level of Graco Throat Seal Liquid (TSL) maintained daily?

Sign off on the daily wet cup inspection

NOTICE: Do not allow the supply containers to run dry of the fluid being pumped.

If a supply container is dry, stop the pump immediately and relieve the pressure.

Throat packing reservoirs one-half filled with TSL

Observe the pot life limit. Flush the mixed fluid out of the mix manifold, dispensing lines and equipment before it hardens.

System flushed when necessary to prevent the fluids from hardening in the equipment and hoses

Check the fluid manufacturer’s instructions for fluid shelf life, and flush the entire system before this time is reached.

System flushed with a compatible solvent

With heavy fluids, flushing solvents could channel through the fluid, leaving a coating of fluid on the inside of the hoses.

Warning: Disconnect the regulator before starting the procedure.

Enter the number of drops of light machine oil placed in the motor air inlet.

Air supply turned on to blow oil into the motor?

Sign off on the daily manual lubrication
