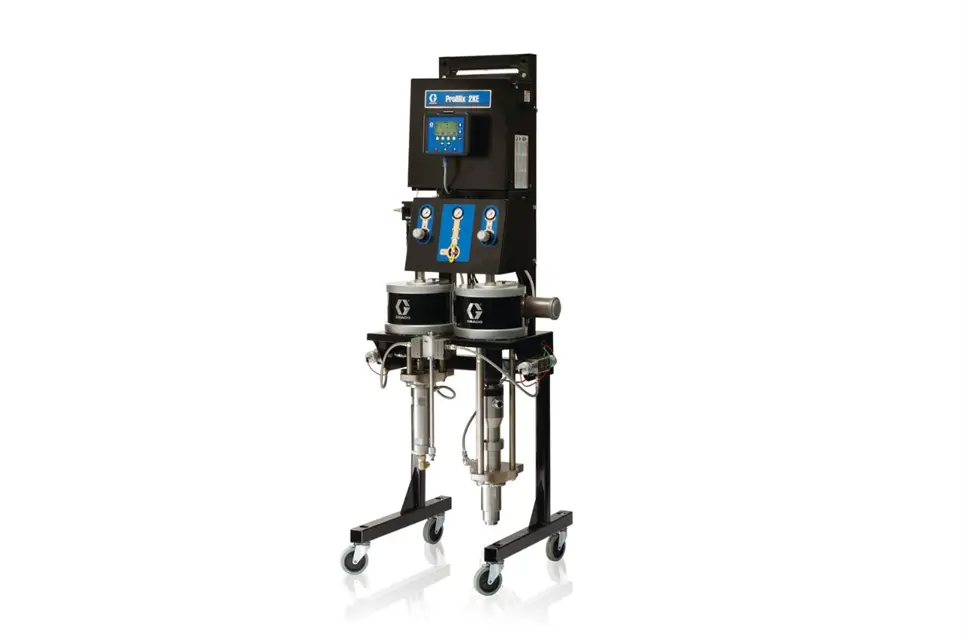

The Graco Pump System 24F099 is a robust industrial pump designed for efficient fluid transfer in various applications. Known for its reliability and performance, this pump system is ideal for demanding environments, ensuring optimal operation and minimal downtime.

Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Graco Pump System 24F099

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents & Manuals

Find all the essential guides in one place.

Tensioning Guide
Belt-diagram
C-120 pulleys
+ 13 more

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

Daily Electrical System Inspection
Replace Roller and Pulley
Install Engine B-120
+ 29 more

Procedures

Integrate maintenance plans directly into your work orders.

Motion Industries
Applied Industrial Technologies
Electrical Brothers
+ 5 more

Parts

Access the parts list for your equipment in MaintainX.

Drive Motor
B2 Rollers
Tensioning System
+ 40 more

Graco Pump System 24F099

Create an account to install this asset package.

Maintenance Plans for Graco Pump System Model 24F099

Integrate maintenance plans directly into your work orders in MaintainX.

Pump Maintenance

Displacement Pump Removal

Pressure relief procedure followed

Fluid line disconnected from the pump outlet

Tie rod shield (Merkur Pumps) or coupler shield (Merkur Bellows Pumps) removed

Coupling nut loosened and coupling collars removed

TSL reservoir (Merkur Pumps) removed

Tie rod nuts removed

Displacement pump removed with the pump adapter attached

Adapter plate clamped in a vise for service

Run this procedure

Power Supply Replacement

⚠️ All electrical wiring must be completed by a qualified electrician and comply with all local codes and regulations.

Wall Power Supply and Filter

1. Follow Before Servicing, page 13. Disconnect main power.

2. Open Control Box.

3. Disconnect the three input wires from the line filter (403).

4. See Fig. 8. Disconnect the power supply CAN cable (401a) from the advanced fluid control module (302).

5. Disconnect line filter wires and power supply wires from the power switch (402).

6. Disconnect the power supply ground wire, PS(GND), from the advanced fluid control module ground terminal (T).

7. Remove four screws (405) and remove power supply (401). If replacing filter, remove two screws (407) and the filter (403).

Run this procedure

Air Controls Maintenance

Remove Air Control Assembly

Followed Before Servicing instructions

Upload a photo of disconnected pump air lines, main air line, and solenoid air line

Loosened four screws from sides of frame

Slid the assembly up and out to remove

Reinstalled air control assembly after repair

Replace Pressure Gauge(s)

Upload a photo of disconnected air lines to gauges

Removed mounting screws

Run this procedure

Alarm Replacement

Follow Before Servicing, page 13. Disconnect main power.

Control Box opened

Alarm wires disconnected from alarm (311)

Alarm jam/mounting nut unscrewed and alarm removed

New alarm assembled and alarm wires reconnected

Control Box closed and power restored

Run this procedure

Advanced Fluid Control Module (AFCM) Replacement

Follow Before Servicing, page 13. Disconnect main power.

Control Box opened

All cables from AFCM (302) removed and locations noted

Ground wire disconnected from ground screw (GS)

Four mounting screws (303) loosened

AFCM slid up and out of keyhole slots

Follow steps in reverse order to install a new AFCM. See electrical schematic for cable connection information.

Follow instructions in Manual 3A1244 to update the software on the new AFCM.

Control Box closed and power restored

Run this procedure
