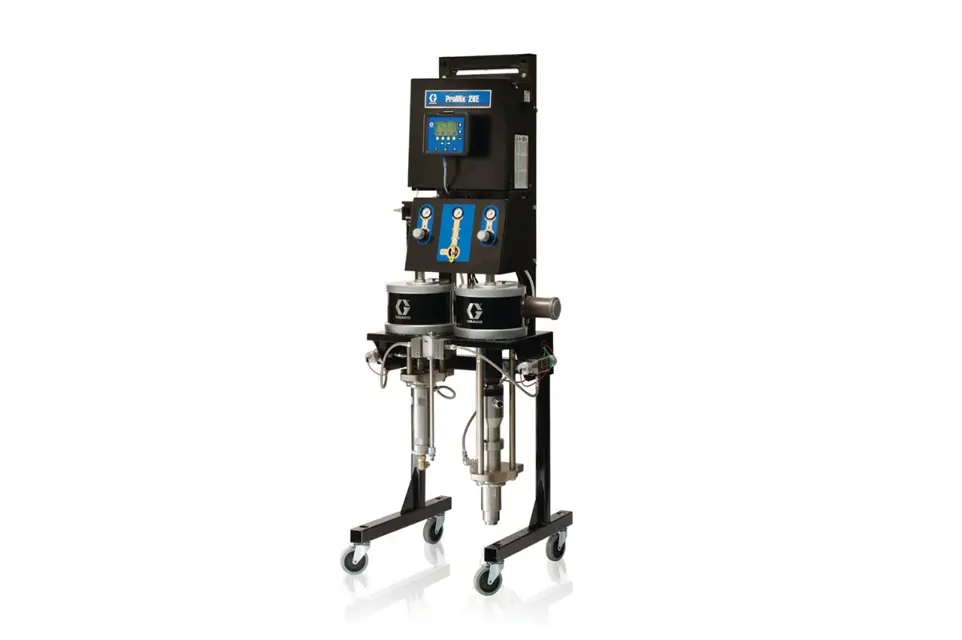

The Graco Pump System 24F098 is a high-performance industrial pump designed for efficient fluid transfer and management. Known for its reliability and durability, this system is ideal for various applications in manufacturing and processing environments. Ensure optimal performance with regular maintenance and quality spare parts.

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Graco Pump System 24F098

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Graco Pump System 24F098

Graco Pump System 24F098

Create an account to install this asset package.

Maintenance Plans for Graco Pump System Model 24F098

Integrate maintenance plans directly into your work orders in MaintainX.

Alarm Replacement

Check mark

Follow Before Servicing, page 13. Disconnect main power.

Check mark

Control Box opened

Check mark

Alarm wires disconnected from alarm (311)

Check mark

Alarm jam/mounting nut unscrewed and alarm removed

Check mark

New alarm assembled and alarm wires reconnected

Check mark

Control Box closed and power restored

Run this procedureArrow right

Air Controls Maintenance

Check mark

Remove Air Control Assembly

Check mark

Followed Before Servicing instructions

Check mark

Disconnected pump air lines, main air line, and solenoid air line

Check mark

Loosened four screws from sides of frame

Check mark

Slid the assembly up and out to remove

Check mark

Reinstalled air control assembly after repair

Check mark

Replace Pressure Gauge(s)

Check mark

Disconnected air lines to gauges

Check mark

Removed mounting screws

Run this procedureArrow right

Solenoid Replacement

Check mark

The system has a minimum of 4 solenoids. If you have a 3-color system or a gun flush box, you have additional (optional) solenoids for each.

Check mark

⚠️⚡️

Check mark

To replace a single solenoid:

Check mark

1. Follow Before Servicing, page 13. Disconnect main power.

Check mark

2. Open Control Box.

Check mark

3. Disconnect 2 solenoid wires (N) from harness (320). See FIG. 3.

Check mark

4. Unscrew 2 screws (P) and remove solenoid (306).

Check mark

5. Install new solenoid (306).

Check mark

6. Connect 2 wires (N) to harness (320). Solenoid wires are polarized (red+, black-). Refer to System Electrical Schematics, pages 54–57.

Run this procedureArrow right

Fluid Controls Maintenance

Check mark

Before Servicing

Check mark

Meter-based systems: Remove Air/Fluid Panel

Check mark

Pump-based systems: Remove fluid inlet hose, fluid outlet pressure sensor, fluid fitting, fluid outlet lines, solvent supply hose

Check mark

Meter-based systems: Disconnect fluid inlet lines from valve stacks

Check mark

Remove four bolts and washers from inside the panel to remove each valve stack

Check mark

3-Color System: Remove four bolts from top of valve stack. Separate the two manifolds

Check mark

Replace Seat(s): Remove dosing valve from manifold, then remove and replace seat and o-rings

Check mark

Service Dosing Valve: Follow all instructions and warnings in manual 312782 to rebuild the dosing valve

Check mark

Valve Manifold Rebuild: For full service of your valve stack, follow directions in Dosing Valve Manifold Rebuild

Run this procedureArrow right

Flow Meters Maintennace

Check mark

Coriolis Meter

Check mark

Upload the 'Before Servicing' page from manual

Check mark

Upload the 'Coriolis meter' page from manual 313599

Check mark

G3000 Meter - Removal

Check mark

Upload the 'Before Servicing' page from manual

Check mark

Cable harness and fluid lines removed

Check mark

Two screws and washers holding the meter and the spacer to the fluid plate removed

Check mark

Upload the 'Service meter' page from manual 308778

Check mark

G3000 Meter - Installation

Run this procedureArrow right
