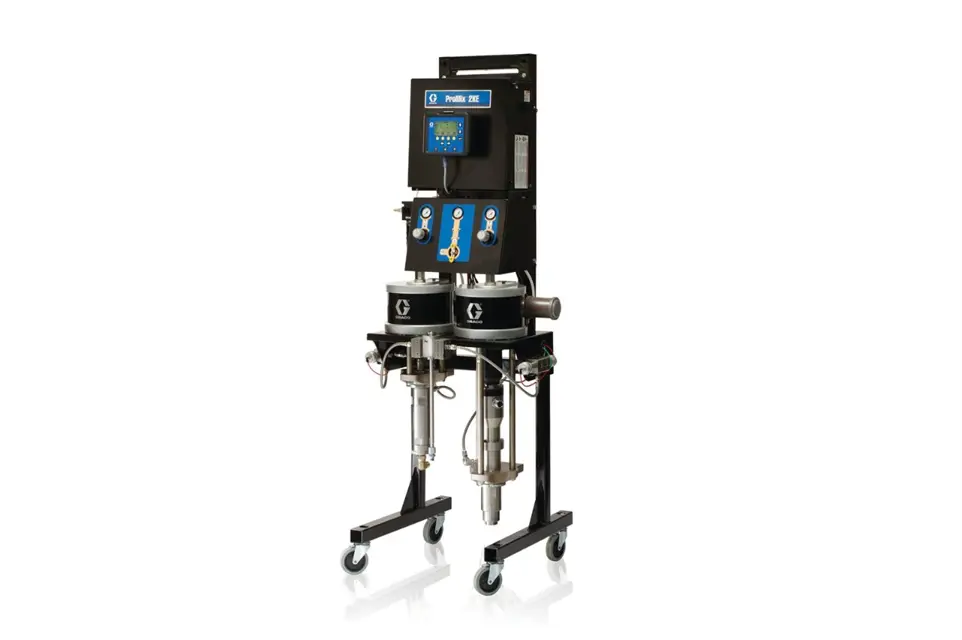

Graco Pump System 24F097

⚠️ Removing a pressurized air filter bowl could cause serious injury. Depressurize air line before servicing.

Pump systems have two air filters: the 5 micron air manifold filter (209) and the 40 micron pump air filter (206). Meter systems have only the 5 micron filter (209). Check filters daily and replace element(s) as needed. Order 15D909 (5 micron) or 15D890 (40 micron).

Close main air shutoff valve on air supply line and on system. Depressurize air line.

Remove and replace element (206a, 209a).

Screw filter bowl (B) on securely. Install cover (A).

Note: Check Fluid Filter Daily.

Follow Before Servicing, page 13. Disconnect main power.

All cables from AFCM (302) removed

Ground wire disconnected from ground screw (GS)

Four mounting screws (303) loosened

AFCM slid up and out of keyhole slots

Follow steps in reverse order to install a new AFCM. See electrical schematic for cable connection information.

Follow instructions in Manual 3A1244 to update the software on the new AFCM.

Upload the manual 313599 for servicing the Coriolis meter

Enter the status of cable harness (118) and fluid lines

Number of screws (110) and washers (109) removed

Upload the meter manual 308778 for servicing the meter

Number of screws (110) and washers (109) used to secure meter (103) and spacer (104)

Enter the status of cable harness (118) and fluid line

The system has a minimum of 4 solenoids. If you have a 3-color system or a gun flush box, you have additional (optional) solenoids for each.

1. Follow Before Servicing, page 13. Disconnect main power.

3. Disconnect 2 solenoid wires (N) from harness (320). See FIG. 3.

4. Unscrew 2 screws (P) and remove solenoid (306).

5. Install new solenoid (306).

6. Connect 2 wires (N) to harness (320). Solenoid wires are polarized (red+, black-). Refer to System Electrical Schematics, pages 54–57.

Follow Before Servicing, page 13. Disconnect main power.

Non-IS Systems: Display Module CAN cable, Advanced Fluid Control Module CAN cable and USB cable disconnected from the USB module (340)

IS Systems: Alternator CAN cable and USB cable disconnected from the USB module (340)

Ground screw (343) removed from top of Control Box for USB module and bracket

Four mounting screws (341) removed from USB module and module removed

Follow steps in reverse order to install a new USB module.

Non-IS Systems Cable Connections: CAN cable from J6 (either port) on the Display Module to P3 on the USB Module

CAN cable from J8 on the Advanced Fluid Control Module to P4 on the USB Module
