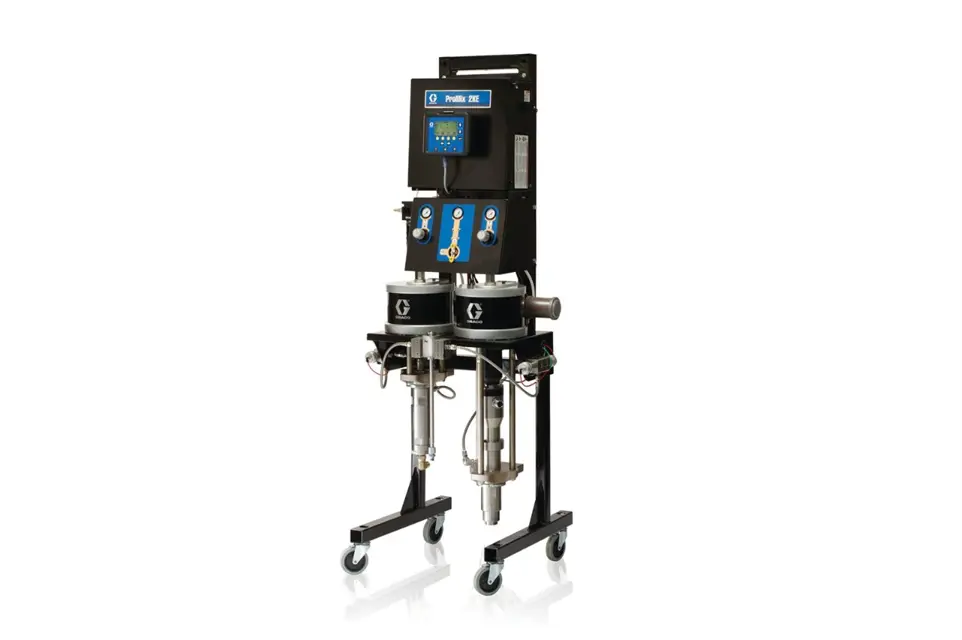

Graco Pump System 24F095
Need answers fast?
Explore the manual using AI.
The Graco Pump System 24F095 is a high-performance industrial pump designed for efficient fluid transfer and management. Known for its reliability and durability, this pump system is ideal for various applications, ensuring optimal performance and minimal downtime in industrial settings.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Graco Pump System 24F095
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Graco Pump System 24F095
Create an account to install this asset package.
Maintenance Plans for Graco Pump System Model 24F095
Integrate maintenance plans directly into your work orders in MaintainX.
Alarm Replacement
Follow Before Servicing, page 13. Disconnect main power.
Control Box opened
Alarm wires disconnected from alarm (311)
Alarm jam/mounting nut unscrewed and alarm removed
New alarm assembled and alarm wires reconnected
Control Box closed and power restored
Pump Maintenance
Displacement Pump Removal
Pressure relief procedure followed
Upload a photo of the disconnected fluid line from the pump outlet
Tie rod shield (26) removed for Merkur Pumps or coupler shield (79) removed for Merkur Bellows Pumps
Coupling nut (16) loosened
Coupling collars (15) removed and coupling nut (16) lifted up
TSL reservoir (25) removed for Merkur Pumps
Tie rod nuts (14) removed
Displacement pump removed with the pump adapter attached
1 Monthly Air Filter Maintenance
⚠️ Removing a pressurized air filter bowl could cause serious injury. Depressurize air line before servicing.
Pump systems have two air filters: the 5 micron air manifold filter (209) and the 40 micron pump air filter (206). Meter systems have only the 5 micron filter (209). Check filters daily and replace element(s) as needed. Order 15D909 (5 micron) or 15D890 (40 micron).
Main air shutoff valve on air supply line and on system closed?
Air line depressurized?
Upload a photo of the removed filter cover (A)
Upload a photo of the unscrewed filter bowl (B)
Upload a photo of the replaced element (206a, 209a)
Filter bowl (B) screwed on securely?
Upload a photo of the installed cover (A)
Flow Meters Maintennace
Coriolis Meter
Upload the manual 313599 for servicing the Coriolis meter
G3000 Meter Removal
Cable harness (118) and fluid lines removed
Two screws (110) and washers (109) holding the meter (103) and the spacer (104) to the fluid plate (101) removed
Upload the meter manual 308778 for servicing the meter
G3000 Meter Installation
Meter (103) and spacer (104) secured to the fluid plate (101) with screws (110) and washers (109)
Cable harness (118) and fluid line connected
Display Module Replacement
Follow Before Servicing, page 13
Display Module (63) removed from the mounting bracket (49)
CAN cable (64) disconnected
New Display Module replaced
CAN cable (64) reconnected
Follow instructions in Manual 3A1244 to update the software on the new Display Module
