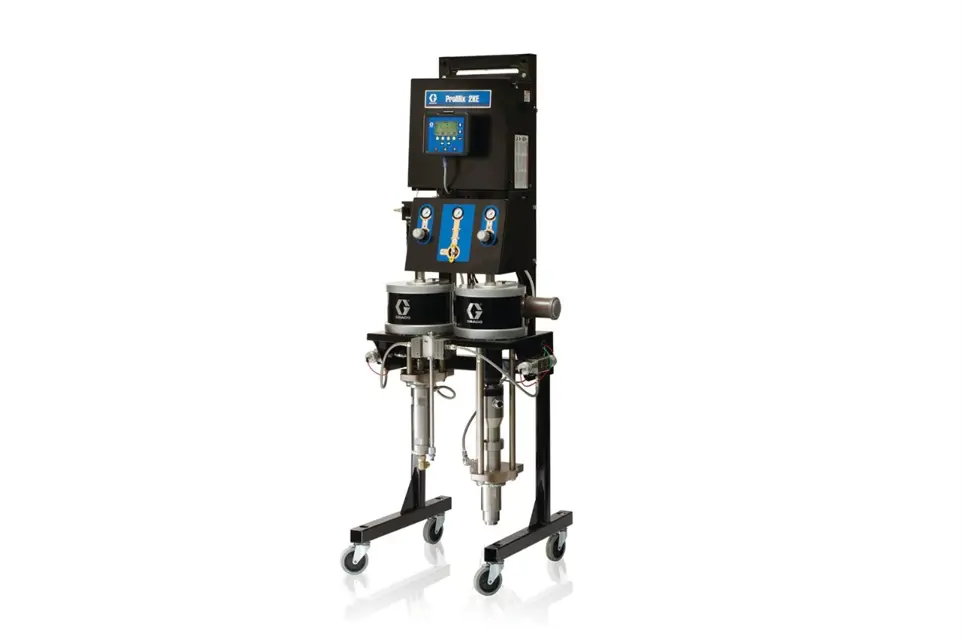

Graco Pump System 24F093

Create an account to install this asset package.

Maintenance Plans for Graco Pump System Model 24F093

Integrate maintenance plans directly into your work orders in MaintainX.

Display Module Replacement

Follow Before Servicing, page 13

Display Module (63) removed from the mounting bracket (49)

CAN cable (64) disconnected

New Display Module replaced

CAN cable (64) reconnected

Follow instructions in Manual 3A1244 to update the software on the new Display Module

Run this procedure

Pump Maintenance

Displacement Pump Removal

Pressure relief procedure followed

Upload a photo of the disconnected fluid line from the pump outlet

Tie rod shield (26) removed for Merkur Pumps or coupler shield (79) removed for Merkur Bellows Pumps

Coupling nut (16) loosened

Coupling collars (15) and coupling nut (16) removed

TSL reservoir (25) removed for Merkur Pumps

Tie rod nuts (14) removed

Displacement pump removed with the pump adapter attached

Run this procedure

Solenoid Replacement

The system has a minimum of 4 solenoids. If you have a 3-color system or a gun flush box, you have additional (optional) solenoids for each.

⚠️⚡️

To replace a single solenoid:

1. Follow Before Servicing, page 13. Disconnect main power.

2. Open Control Box.

3. Disconnect 2 solenoid wires (N) from harness (320). See FIG. 3.

4. Unscrew 2 screws (P) and remove solenoid (306).

5. Install new solenoid (306).

6. Connect 2 wires (N) to harness (320). Solenoid wires are polarized (red+, black-). Refer to System Electrical Schematics, pages 54–57.

Run this procedure

Air Controls Maintenance

Remove Air Control Assembly

Followed Before Servicing instructions

Disconnected pump air lines, main air line, and solenoid air line

Loosened four screws from sides of frame

Slid the assembly up and out to remove

Replace Pressure Gauge(s)

Disconnected air lines to gauges

Removed mounting screws

Removed fittings and gauges

Run this procedure

1 Monthly Air Filter Maintenance

⚠️ Removing a pressurized air filter bowl could cause serious injury. Depressurize air line before servicing.

Pump systems have two air filters: the 5 micron air manifold filter (209) and the 40 micron pump air filter (206). Meter systems have only the 5 micron filter (209). Check filters daily and replace element(s) as needed. Order 15D909 (5 micron) or 15D890 (40 micron).

Close main air shutoff valve on air supply line and on system. Depressurize air line.

Remove the filter cover (A).

Unscrew the filter bowl (B).

Remove and replace element (206a, 209a).

Screw filter bowl (B) on securely. Install cover (A).

Note: Check Fluid Filter Daily.

Run this procedure
