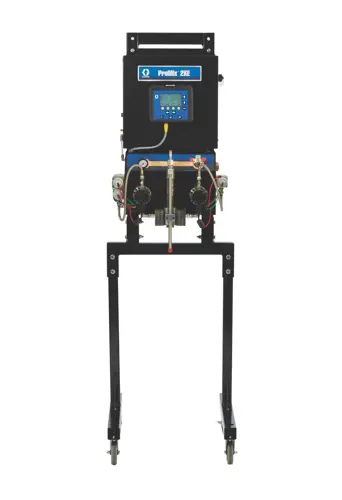

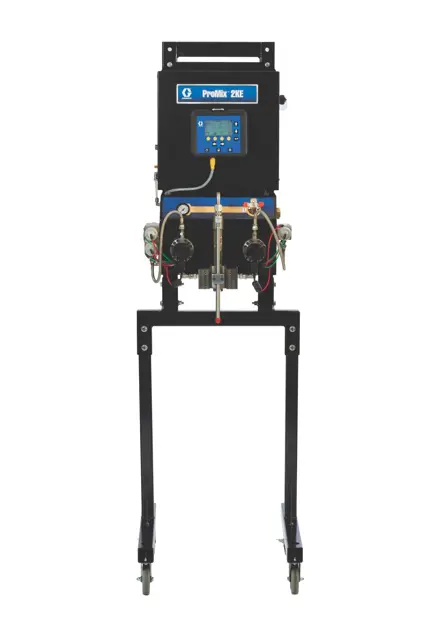

Graco Meter System 24F084

Create an account to install this asset package.

Maintenance Plans for Graco Meter System Model 24F084

Integrate maintenance plans directly into your work orders in MaintainX.

USB Module Replacement

Follow Before Servicing, page 13. Disconnect main power.

Control Box opened

Non-IS Systems: Display Module CAN cable, Advanced Fluid Control Module CAN cable and USB cable disconnected from the USB module (340)

IS Systems: Alternator CAN cable and USB cable disconnected from the USB module (340)

Ground screw (343) removed from top of Control Box for USB module and bracket

Four mounting screws (341) removed from USB module and module removed

New USB module installed following steps in reverse order

Non-IS Systems Cable Connections: CAN cable from J6 (either port) on the Display Module to P3 on the USB Module, CAN cable from J8 on the Advanced Fluid Control Module to P4 on the USB Module, USB cable (345) from the port on the Control Box to the port on the USB Module

IS Systems Cable Connections: CAN cable from J2 on the Alternator Module to P3 on the USB Module, USB cable (345) from the port on the Control Box to the port on the USB Module

Run this procedure

Advanced Fluid Control Module (AFCM) Replacement

Follow Before Servicing, page 13. Disconnect main power.

Control Box opened

All cables from AFCM (302) removed

Note of cable locations

Ground wire disconnected from ground screw (GS)

Four mounting screws (303) loosened

AFCM slid up and out of keyhole slots

Follow steps in reverse order to install a new AFCM. See electrical schematic for cable connection information.

Upload the updated software on the new AFCM

Run this procedure

Air Controls Maintenance

Remove Air/Fluid Panel

1. Follow Before Servicing, page 13.

2. Disconnect main air line and solenoid air line. Disconnect fluid lines where they enter the valve stacks.

3. Remove four screws (8) from sides of frame.

4. Remove air/fluid panel assembly.

5. Follow steps in reverse order to reinstall assembly after repair.

Replace Ball Valve

1. See Remove Air/Fluid Panel, page 23.

2. Remove screw (106b) and washer (106c) from the handle on the front of the panel.

Run this procedure

Flow Meters Maintennace

Coriolis Meter

Upload the manual 313599 for servicing the Coriolis meter

G3000 Meter Removal

Cable harness (118) and fluid lines removed

Two screws (110) and washers (109) holding the meter (103) and the spacer (104) to the fluid plate (101) removed

Upload the meter manual 308778 for servicing the G3000 meter

G3000 Meter Installation

Meter (103) and spacer (104) secured to the fluid plate (101) with screws (110) and washers (109)

Cable harness (118) and fluid line connected

Run this procedure

Alarm Replacement

Follow Before Servicing, page 13. Disconnect main power.

Control Box opened

Alarm wires disconnected from alarm (311)

Alarm jam/mounting nut unscrewed and alarm removed

New alarm assembled and alarm wires reconnected

Control Box closed and power restored

Run this procedure
