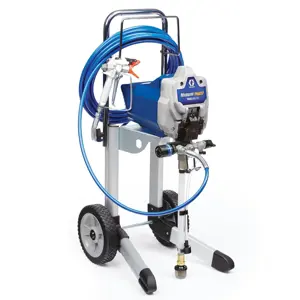

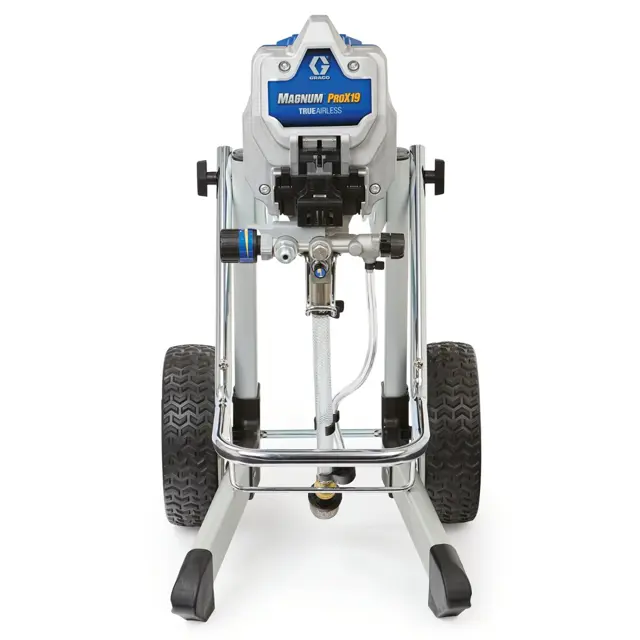

Graco Electric Airless Sprayer Magnum ProX19
Create an account to install this asset package.
Maintenance Plans for Graco Electric Airless Sprayer Model Magnum ProX19
Integrate maintenance plans directly into your work orders in MaintainX.
Electric Airless Sprayer Inspection
Airless Hoses
Check hose for damage every time you spray. Do not attempt to repair hose if hose jacket or fittings are damaged. Do not use hoses shorter than 25 ft (7.6 m). Wrench tighten, using two wrenches.
Spray Tips
- Always clean tips with compatible cleaning fluid and brush after spraying.
- Tips may require replacement after 15 gallons (57 liters) or they may last through 60 gallons (227 liters) depending on abrasiveness of paint.;
1 Daily Electric Airless Sprayer Inspection
Warning: Protect the internal drive parts of this sprayer from water. Openings in shroud allow cooling of mechanical parts and electronics inside. If water gets into these openings, the sprayer could malfunction or be permanently damaged.
Inspect/clean InstaClean filter
Inspect/clean fluid inlet strainer
Inspect/clean gun filter
Inspect motor shroud openings for blockage
Sign off on the daily inspection
Pump Maintenance
Warning: This maintenance check requires trained personnel with PPE!
Pump Repair
Check if paint is leaking down outside of pump
Upload a photo of the pump repair kit
Pump Removal
Unplug the sprayer from the power source
Remove the easy access door
Slide pump assembly off the mounting pins
Inlet Valve Removal
Parts for Graco Electric Airless Sprayer Magnum ProX19
Access the parts list for your equipment in MaintainX.
Spray Tip – Fan Width: 8–10 in. (203–254 mm), Hole Size: 0.017 in. (0.43 mm)
221417
Spray Tip – Fan Width: 10–12 in. (254–305 mm), Hole Size: 0.021 in. (0.53 mm)
221521
Spray Tip – Fan Width: 6–8 in. (152–203 mm), Hole Size: 0.011 in. (0.28 mm)
221311
Spray Tip – Fan Width: 10–12 in. (254–305 mm), Hole Size: 0.015 in. (0.38 mm)
221515
Spray Tip – Fan Width: 8–10 in. (203–254 mm), Hole Size: 0.013 in. (0.33 mm)
221413
Spray Tip – Fan Width: 8–10 in. (203–254 mm), Hole Size: 0.017 in. (0.43 mm)
221417
Spray Tip – Fan Width: 10–12 in. (254–305 mm), Hole Size: 0.021 in. (0.53 mm)
221521
Spray Tip – Fan Width: 6–8 in. (152–203 mm), Hole Size: 0.011 in. (0.28 mm)
221311
Spray Tip – Fan Width: 10–12 in. (254–305 mm), Hole Size: 0.015 in. (0.38 mm)
221515
Spray Tip – Fan Width: 8–10 in. (203–254 mm), Hole Size: 0.013 in. (0.33 mm)
221413
Spray Tip – Fan Width: 8–10 in. (203–254 mm), Hole Size: 0.017 in. (0.43 mm)
221417
Spray Tip – Fan Width: 10–12 in. (254–305 mm), Hole Size: 0.021 in. (0.53 mm)
221521
Spray Tip – Fan Width: 6–8 in. (152–203 mm), Hole Size: 0.011 in. (0.28 mm)
221311
Spray Tip – Fan Width: 10–12 in. (254–305 mm), Hole Size: 0.015 in. (0.38 mm)
221515
Spray Tip – Fan Width: 8–10 in. (203–254 mm), Hole Size: 0.013 in. (0.33 mm)
221413
