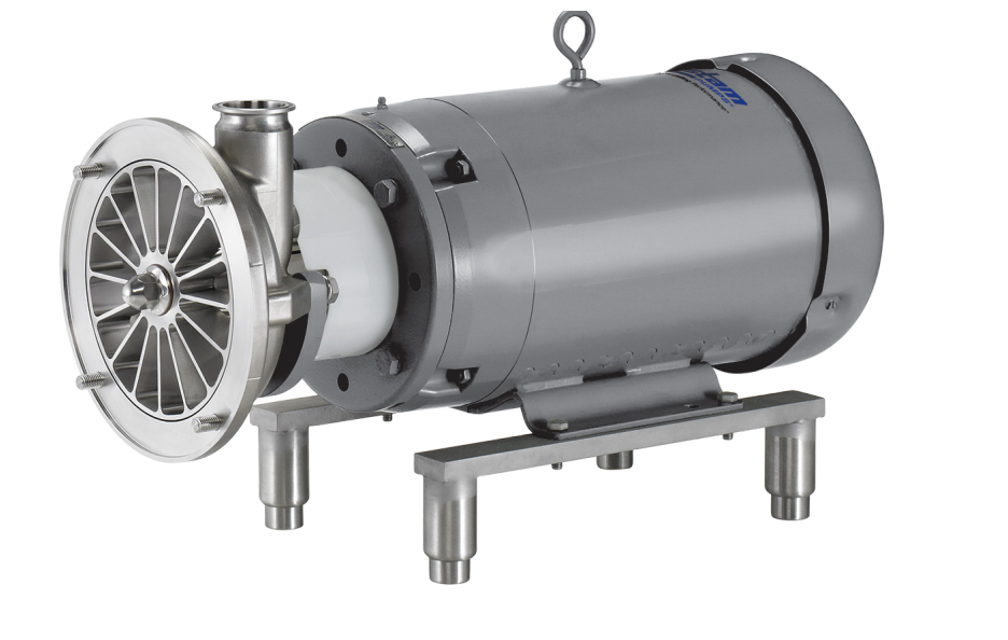

FRISTAM Pump FZX 2200

Use a high grade ball and roller bearing grease. Recommendations for standard service conditions include Shell Dolium R or Chevron SRI.

If frame size Up to 210 (132) inclusive 12,000 hours

If frame size Over 210 to 280 (132 to 180) inclusive 9,500 hours

If frame size Over 280 to 360 (225) inclusive 7,400 hours

For severe service conditions, multiply interval hours by .5. For extreme service conditions, multiply interval hours by .1;

FP/FPX series pumps should only be used for SIP (Sterilization In Place) process with the prior approval of Fristam

Suitability may depend on selected elastomers and/or process temperatures

FP/FPX series pumps are suitable for the CIP (Cleaning In Place) process

The following is a general example of the CIP process

• Intermediate flush with water

Warning: This maintenance check requires trained personnel with PPE!

Disconnect the energy source to the pump and observe all lock out/tag out procedures.

Inspect all elastomers when performing pump maintenance.

Replace elastomers (o-rings and gaskets) during seal, pump shaft and/or motor replacements.

Inspect the pump shaft and collar annually for wear.

Inspect the shaft collar bolt(s) annually or more often in corrosive environments.

Disconnect the suction and discharge piping.

Remove the pump cover and cover gasket.

Remove the impeller by pulling the impeller toward you.
