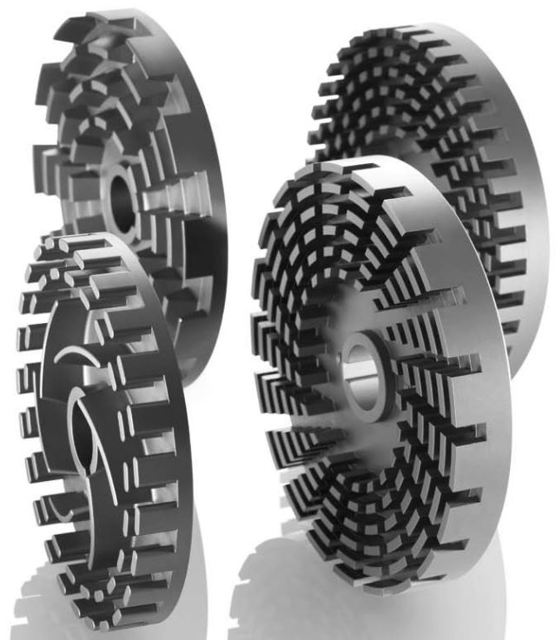

FRISTAM Shear Pump FSPE 3532/134/175A

Create an account to install this asset package.

Maintenance Plans for FRISTAM Shear Pump Model FSPE 3532/134/175A

Integrate maintenance plans directly into your work orders in MaintainX.

Shaft Seal Replacement

Warning: This procedure requires trained personnel with PPE!

Pumping medium or sealing or quenching liquid flows out of the pump on the atmosphere side

Sealing liquid leaks into the pumping medium

Dismantle the pump head. See Chapter 9.8, 'Pump Head Removal' page 17

Replace the mechanical seal and mount the pump head. See Chapter 9.10, 'Pump Head Attachment' page 19.

Preassemble the seals on the shaft

Preassemble the pump casing

Mount the pump casing on the lantern

Mount the mechanical seal

Run this procedure

5000 Hourly L1 Model Shaft Bearing Lubrication

Warning: This procedure requires trained personnel with PPE!

Cover off of the bearing block

Bearing cap removed on the pump side

Bearing cap removed on the motor side

Shaft forced out in the direction of the pump head

Note: All parts that are gray in the above two figures remain on the shaft

Surfaces of all parts cleaned and checked for damage

Select the lubricant used

Pump shaft with the bearing pressed into the bearing block

Run this procedure

Pump Clearance Check

Measurement of the Impeller–Pump Casing Clearance

Pump cover has been removed

Pump casing is connected firmly to the lantern

The impeller has been mounted and the impeller nut tightened

Measure the clearance Z between the pump casing (47) and the impeller (46) using vernier calipers

Compare the clearance Z with Table 7 'Clearances' page 19

Measurement of the Impeller–Pump Cover Clearance

Pipe on discharge line fitting has been detached

Pump casing is connected firmly to the lantern

Run this procedure

Model L Coupling Replacement

Warning: Only use couplings approved by Fristam. The coupling must be appropriate for the characteristic curve of the pump. If you have any questions, please contact Fristam.

Motor turned off and secured from accidental activation

Coupling guard removed

Pump and motor detached from base frame or foundation

Coupling turned off in accordance with motor manufacturer's specifications

Old coupling parts disposed in an environmentally friendly manner

New coupling parts placed on the drive shaft and gear shaft

Motor placed on base frame or foundation and fastening screws slightly tightened

Parallel and angular misalignment of shafts checked

Run this procedure

5000 Hourly KF Models Shaft Bearing Lubrication

Warning: This procedure requires trained personnel with PPE!

Bearing cap removed
