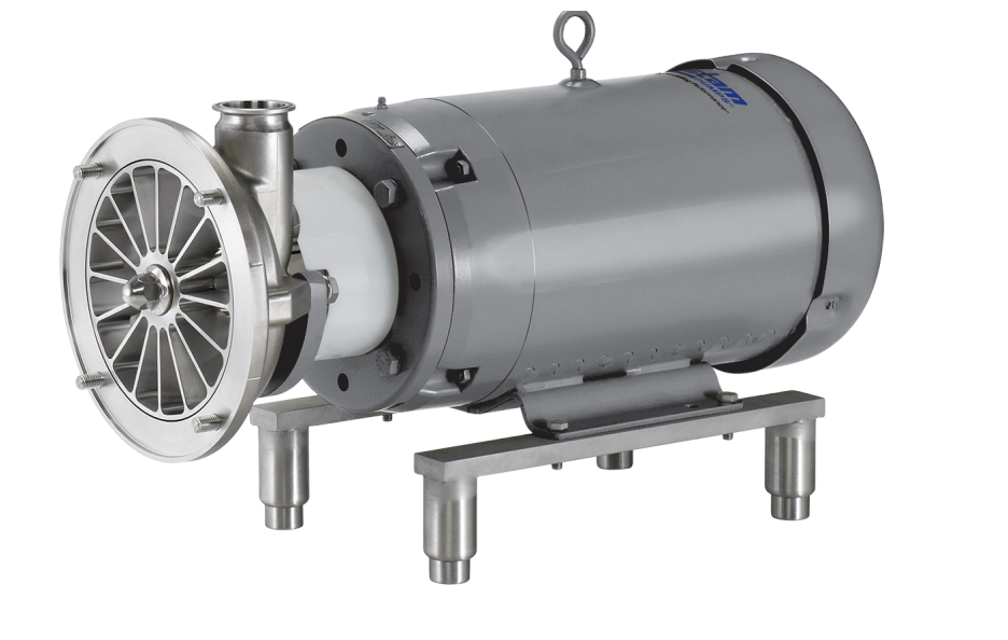

FRISTAM Pump FZX 2400

Replace mechanical seal annually under normal duty.

Inspect all elastomers when performing pump maintenance.

We recommend replacing elastomers (o-rings and gaskets) during seal, pump shaft and/or motor replacements.

Inspect the pump shaft and collar annually for wear.

Inspect the shaft collar bolt(s) anually or more often in corrosive environments.

Begin all pump maintenance by disconnecting the energy source to the pump

Observe all lock out/tag out procedures as outlined by ANSI Z244.1-1982 and OSHA 1910.147 to prevent accidental start-up and injury

Tools required for seal replacement

Soft-faced hammer (5 lb. dead blow)

Use a high grade ball and roller bearing grease. Recommendations for standard service conditions include Shell Dolium R or Chevron SRI.

If frame size Up to 210 (132) inclusive 12,000 hours

If frame size Over 210 to 280 (132 to 180) inclusive 9,500 hours

If frame size Over 280 to 360 (225) inclusive 7,400 hours

For severe service conditions, multiply interval hours by .5. For extreme service conditions, multiply interval hours by .1;

FP/FPX series pumps should only be used for SIP (Sterilization In Place) process with the prior approval of Fristam

Suitability may depend on selected elastomers and/or process temperatures

FP/FPX series pumps are suitable for the CIP (Cleaning In Place) process

The following is a general example of the CIP process

• Intermediate flush with water
