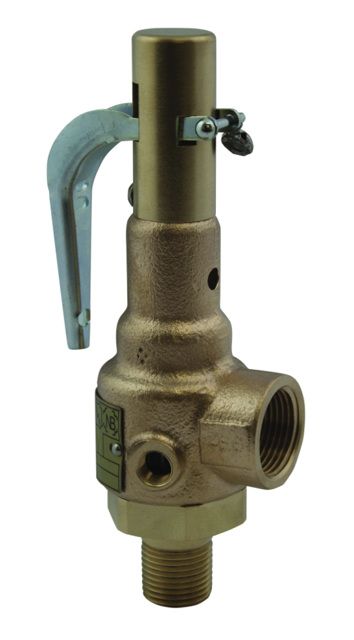

Apollo Safety Valve 19K

CAUTION! Before testing, make certain discharge pipe is properly connected to valve outlet and arranged to contain and safely dispose of discharge

CAUTION! Hot, high pressure fluid may be discharged from body drain during lever test.

CAUTION! High sound levels may be experienced during lever test. Wear proper safety equipment and exercise extreme care.

Discharge pipe properly connected to valve outlet?

Sign off on the safety valve test

CAUTION! Before testing, make certain discharge pipe is properly connected to valve outlet and arranged to contain and safely dispose of discharge

CAUTION! Hot, high pressure fluid may be discharged from body drain during lever test.

CAUTION! High sound levels may be experienced during lever test. Wear proper safety equipment and exercise extreme care.

Under normal operating conditions in steam service, was the pressure test performed annually?

In air/gas service, was the pressure test performed every 3 years?

Under severe service conditions or if corrosion, pitting, and/or deposits are noticed within the valve body, was the testing performed more often?

Enter the maximum operating pressure at which the test was performed

Was the test lever held fully open for at least five seconds to flush the valve seat free of sediment and debris?

After releasing the lever, did the valve snap shut?

CAUTION! Before testing, make certain discharge pipe is properly connected to valve outlet and arranged to contain and safely dispose of discharge

CAUTION! Hot, high pressure fluid may be discharged from body drain during lever test.

CAUTION! High sound levels may be experienced during lever test. Wear proper safety equipment and exercise extreme care.

Discharge pipe properly connected to valve outlet?

Arrangements made to safely dispose of discharge?

Safety equipment worn during lever test?

Visual inspection performed every 2 months in steam service?

Visual inspection performed every 6 months in air/gas service?

Sign off on the visual inspection
