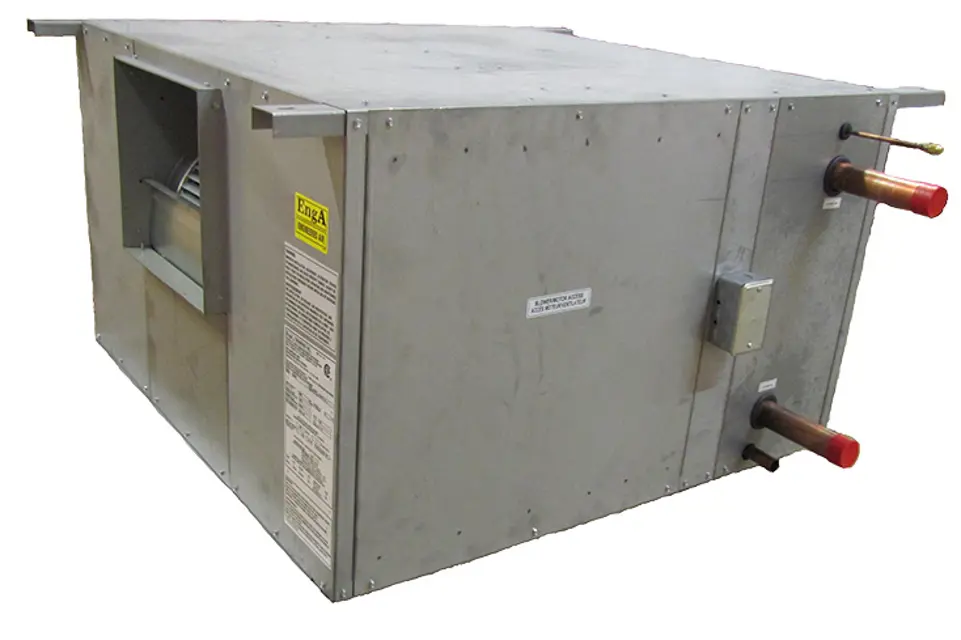

Engineered Air Fan Coil HFC

Create an account to install this asset package.

Maintenance Plans for Engineered Air Fan Coil Model HFC

Integrate maintenance plans directly into your work orders in MaintainX.

2 Yearly Belt Drive Motor Lubrication

Preparation

Remove grease drain plugs from the motor

Operate the motor for 15 minutes before replacing plugs

Lubrication Guidelines

Recommended Motor Lubrication Intervals

Note any severe conditions affecting lubrication frequency

Final Steps

Replace grease drain plugs

Ensure not to over grease the motor

Run this procedure

5 Yearly Belt Drive Motor Lubrication

Preparation

Remove grease drain plugs from the motor

Operate the motor for 15 minutes before replacing plugs

Lubrication Guidelines

Recommended Motor Lubrication Intervals

Note any severe conditions affecting lubrication frequency

Final Steps

Replace grease drain plugs

Ensure not to over grease the motor

Run this procedure

1 Monthly Filter Inspection

Filter Inspection Preparation

Review submittal record for filter quantities, sizes, and types

Is the unit operating with high levels of outside air?

Filter Inspection and Cleaning

Inspect filters for the following conditions

Check if filters are plugged or excessively dirty

Is the filter a High Velocity Permanent type?

Cleaning High Velocity Permanent Filters

Rinse filter with water

Run this procedure

Belt Adjustment

Pre-Adjustment Checks

Verify the type of fan unit

Is the unit equipped with a belt drive fan?

Pulley Alignment

Measure pulley alignment

Is the pulley alignment within acceptable range?

Belt Tension Adjustment

Measure belt deflection

Is the belt tension appropriate?

Run this procedure

Initial 1 Months Electric Heater Electrical Check

Safety Precautions

Ensure power is disconnected before servicing

Verify that all interlock and safety switches are engaged

Electrical Connections Inspection

Check and tighten electrical connections

Were all connections secure after tightening?

Post-Inspection

Reconnect power to the unit

Technician's signature

Run this procedure
