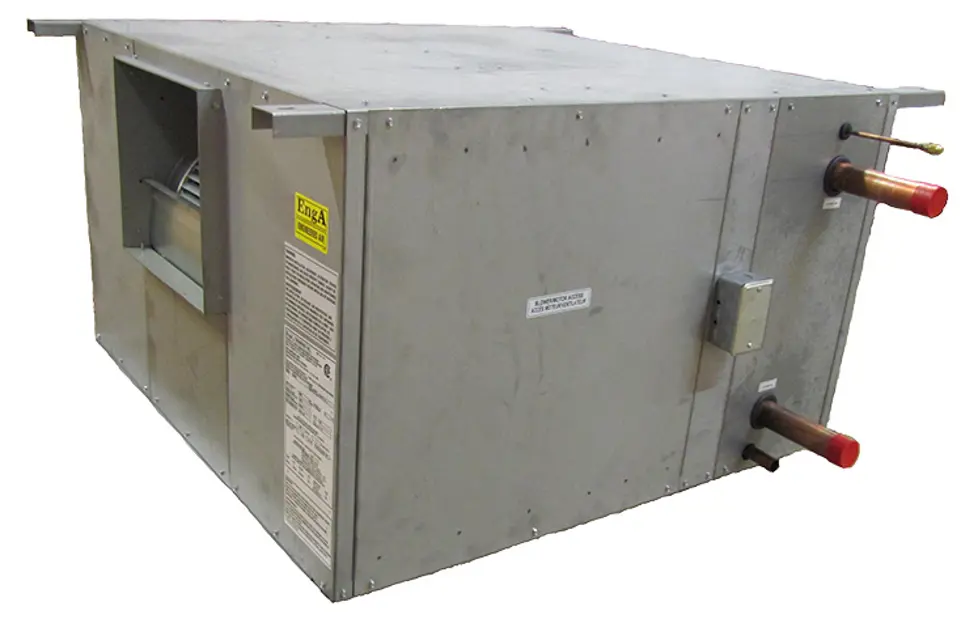

Engineered Air Fan Coil TFC

Determine filter replacement interval based on

Is the filter excessively dirty or plugged?

Remove filters from units with high levels of outside air during winter months in areas with heavy frost or snow

Use same size and type for replacement

Obtain replacement filters from Engineered Air representative

Warning: High Voltage and Moving Parts

Technician's Qualification Verification

Disconnect power before servicing

Check and tighten electrical connections

Were all connections checked and tightened as required?

Disconnect power before servicing

Ensure all interlock and safety switches are engaged

Check for signs of potential problems

Is sufficient airflow passing through the heater as marked on the unit rating plate?

Are there any areas of the coil elements glowing bright red when viewed in the dark with the unit operating?

Reconnect power after servicing

Warning: High Voltage and Moving Parts

Ensure power is disconnected before servicing

Verify that no interlock or safety switches are bypassed

Check and tighten all electrical connections to

Were all connections secure after tightening?

Is the power restored safely after servicing?

Check all wiring for loose connections

Enter the voltage at the unit (while in operation)

Enter the unit rating plate amperage

Is the amperage draw within the unit rating plate limits?

Inspect contactors for cleanliness and good contact

Are any contacts abnormally pitted or burned?
