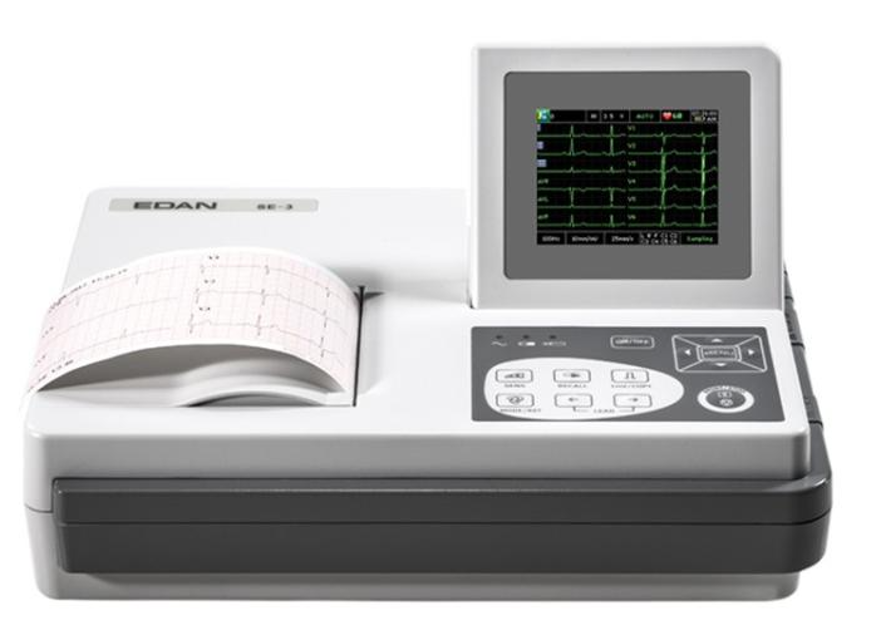

Edan Instruments Electrocardiograph SE-3

Inspect the equipment and accessories for mechanical and functional damage.

Inspect the safety relevant labels for legibility.

Inspect the fuse to verify compliance with rated current and breaking characteristics.

Verify the device functions properly as described in the instructions for use.

Test the protection earth resistance according to IEC 601-1/1988: Limit 0.2 ohm.

Test the earth leakage current according to IEC 601-1/1988: Limit: NC 500uA, SFC 1000uA.

Test the patient leakage current according to IEC 601-1/1988: Limit: 10uA (CF).

Verify that the battery's useful life is over or there is a foul smell and leakage.

Is the battery compartment opened by a qualified service engineer authorized by EDAN?

Ensure the following before replacing the battery

Contact the manufacturer or local distributor for battery disposal.

Dispose of the battery according to local regulations if not contacting the manufacturer.

Remove the paper from the recorder

Dampen a clean soft cloth with 75% alcohol

Wipe the print head gently with the dampened cloth

For stubborn stains, soak with a little alcohol and wipe off with a clean soft cloth

Allow the print head to air dry

Inspect the equipment and accessories for mechanical and functional damage.

Inspect the safety relevant labels for legibility.

Inspect the fuse to verify compliance with rated current and breaking characteristics.

Verify the device functions properly as described in the instructions for use.

Test the protection earth resistance according to IEC 601-1/1988: Limit 0.2 ohm.

Test the earth leakage current according to IEC 601-1/1988: Limit: NC 500uA, SFC 1000uA.

Test the patient leakage current according to IEC 601-1/1988: Limit: 10uA (CF).

Inspect the equipment and accessories for mechanical and functional damage.

Inspect the safety relevant labels for legibility.

Inspect the fuse to verify compliance with rated current and breaking characteristics.

Verify the device functions properly as described in the instructions for use.

Test the protection earth resistance according to IEC 601-1/1988: Limit 0.2 ohm.

Test the earth leakage current according to IEC 601-1/1988: Limit: NC 500uA, SFC 1000uA.

Test the patient leakage current according to IEC 601-1/1988: Limit: 10uA (CF).
