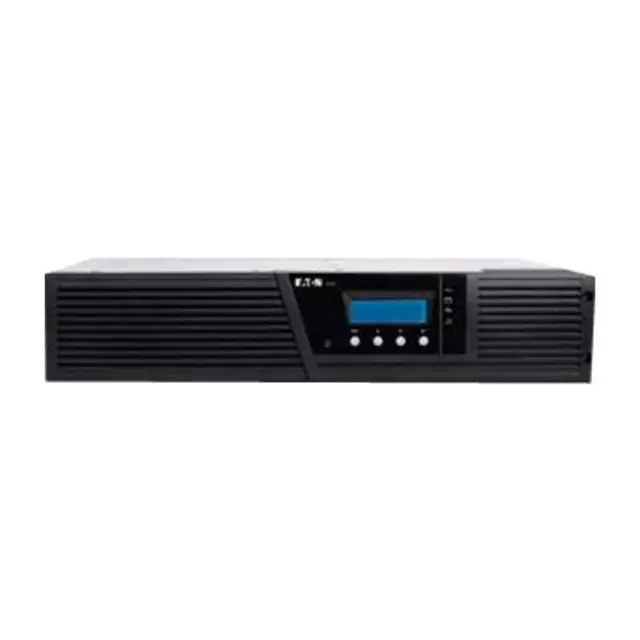

Eaton Uninterruptible Power System PW9130G3000R-XL2U
Need answers fast?
Explore the manual using AI.
The Eaton Uninterruptible Power System PW9130G3000R-XL2U is a reliable industrial UPS designed to provide seamless power protection and management. With advanced features and robust performance, this model ensures continuous operation and safeguards critical equipment from power disturbances.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Eaton Uninterruptible Power System PW9130G3000R-XL2U
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Eaton Uninterruptible Power System PW9130G3000R-XL2U
Create an account to install this asset package.
Maintenance Plans for Eaton Uninterruptible Power System Model PW9130G3000R-XL2U
Integrate maintenance plans directly into your work orders in MaintainX.
5 Year UPS Internal Batteries Replacement
Warning: Ensure the UPS is turned off and unplugged before starting the procedure
UPS front cover removed
Two screws holding the internal battery connector removed and retained
Internal battery connector disconnected
Two screws holding the battery cover plate removed and retained
Battery cover plate removed and retained
Battery package slid out onto a flat, stable surface
New battery package slid into the cabinet
Battery cover plate replaced and screws reinstalled
New Battery Testing
Warning: Ensure the UPS is unplugged before starting the procedure
Enter the date when the UPS was plugged in for charging
Did the UPS charge for 48 hours?
Press any button to activate the menu option
Was the menu option activated?
Select CONTROL then START BATTERY TEST
Was the CONTROL and START BATTERY TEST selected?
The UPS starts a battery test if the batteries are fully charged, the UPS is in Normal mode with no active alarms, and the bypass voltage is acceptable
Did the UPS start a battery test?
6 Month Battery Service
Warning: Only trained personnel should perform this procedure
Is the UPS connected to utility power?
Is the battery recharging?
Enter the battery recharge date from the shipping carton label
Sign off on the battery service
