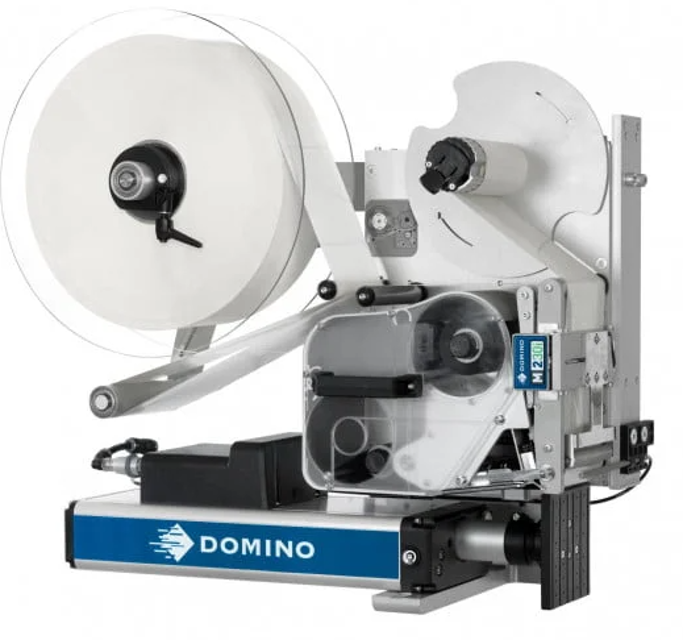

Domino Label Printer Applicator M230i-T6

Ensure no hard, metallic or abrasive objects are used for cleaning

Use only manufacturer’s approved cleaning wipes

Switch off electrical power and disconnect the air supply

Raise the print head lifting handle

Ensure the electrical power is off

Gently ease out the labels/ribbon sideways

Rub the cleaning wipes along the platen roller (f)

Rub the cleaning wipes along the ribbon take-up roller (c)

Slowly turn the roller by hand until the roller is completely clean

Confirm the rollers are completely clean

Blow or brush away loose dust and lint particles within the print mechanism

Use cleaning wipes to wipe the print head

Is the print head free of dust and lint?

Was the print head cleaned successfully?

Dispose of used cleaning wipes properly

Raise the print head lifting handle

Turn the two knobs anti-clockwise to release the ribbon rolls

Place an empty roll on the ribbon take-up roll (a)

Clean all paper dust and label parts from the label-gap sensor

Ensure the sensor is not bent during cleaning

Is the label-gap sensor parallel to the label?

Perform label positioning as per instructions on page 3
