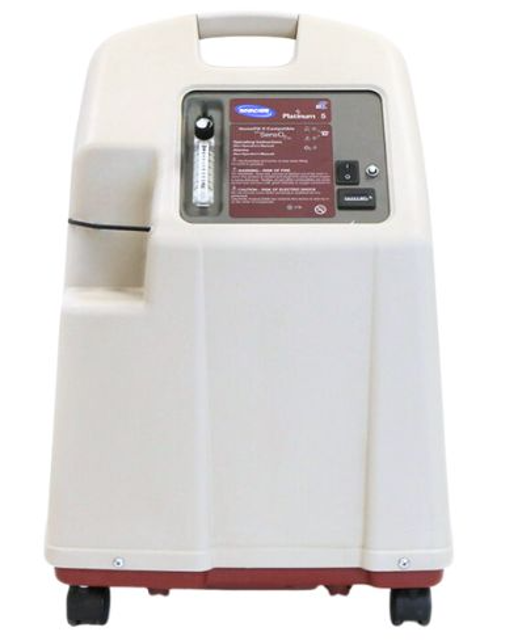

Invacare Corporation Oxygen Concentrator IRC5LX

DANGER: To prevent electrical shock, ALWAYS disconnect concentrator from electrical outlet before servicing.

NOTE: The Platinum Concentrators are specifically designed to minimize routine preventive maintenance at intervals of once per year. In places with high dust or soot levels, maintenance may need to be performed more often. The following MUST be performed at a minimum of one year in service to assure years of additional reliability. Refer to Troubleshooting on page 17 for plugged filter symptoms.

Only qualified technicians should perform preventive maintenance on the concentrator. Power should be disconnected before beginning preventive maintenance on the Invacare concentrator.

Disconnect concentrator from electrical outlet

Inspect the cabinet filter for dust or soot accumulation

Is the filter clogged or dirty?

Disconnect concentrator from electrical outlet

Refer to FIGURE 8.1 for guidance

Remove spade connectors from P.E. valve assembly

Remove tie-wraps from P.E. valve tubing

Remove P.E. valve assembly from tubing

Clean loose dirt from the outside of the compressor

Loosen the eight head screws using the Torx T-25 torque wrench

Note head placement before removing compressor heads

Remove the compressor head plate

Locate the filter access and humidifier adapter storage plate on the side of the concentrator

Insert a flathead screwdriver in the plate groove on the top edge of the plate and gently pry the humidifier adapter storage plate open

Grasp the existing outlet HEPA filter and disconnect from the short silicone tube

Disconnect existing outlet HEPA filter from the long silicone tube

Discard existing outlet HEPA filter

Attach new outlet HEPA filter to short and long silicone tubes

Refer to FIGURE 7.18 and FIGURE 7.19 on page 50

Removal of Retainer Plate, Cup, and Cylinder

Remove the two Allen head screws using a 1/8-inch Allen wrench

Did the cylinder, cup, and retainer plate come off together?
