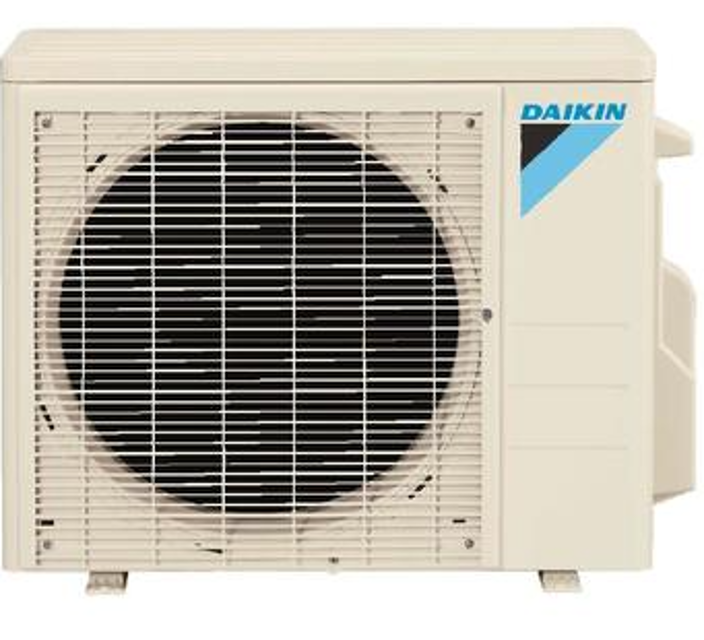

Daikin Outdoor Unit Ceiling Mounted Cassette Type Heat Pump RX12RMVJU9

Need answers fast?
Explore the manual using AI.

Daikin Outdoor Unit Ceiling Mounted Cassette Type Heat Pump RX12RMVJU9
Daikin Outdoor Unit Ceiling Mounted Cassette Type Heat Pump RX12RMVJU9

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Daikin Outdoor Unit Ceiling Mounted Cassette Type Heat Pump RX12RMVJU9

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Daikin Outdoor Unit Ceiling Mounted Cassette Type Heat Pump RX12RMVJU9

Daikin Outdoor Unit Ceiling Mounted Cassette Type Heat Pump RX12RMVJU9

Create an account to install this asset package.

Maintenance Plans for Daikin Outdoor Unit Ceiling Mounted Cassette Type Heat Pump Model RX12RMVJU9

Integrate maintenance plans directly into your work orders in MaintainX.

Main Circuit Short Check

Check mark

Check No.20: Check to make sure that the voltage between (+) and (–) of the diode bridge (DB1) is approximately 0 V before checking.

Check mark

Enter the voltage between (+) and (–) of the diode bridge (DB1)

Check mark

Measure the resistance between the pins of the DB1 referring to the table below.

Check mark

Enter the resistance between the pins of the DB1

Check mark

If the resistance is  or less than 1 k, does short circuit occur on the main circuit?

Check mark

Sign off on the main circuit short check

Run this procedureArrow right

Indoor Fan Motor Connector Output Check

Check mark

Check the connection of connector

Check mark

Check motor power supply voltage output (pins 5 ~ 8)

Check mark

Check motor control voltage (pins 5 ~ 4)

Check mark

Check rotation command voltage output (pins 5 ~ 3)

Check mark

Check rotation pulse input (pins 5 - 2)

Check mark

Sign off on the connector output check

Run this procedureArrow right

Outdoor Fan Motor Check

Check mark

Warning: Ensure operation is off and power is off before starting the procedure.

Check mark

Disconnect the connector S70 or S71.

Check mark

Voltage between the pins 4 - 7

Check mark

Control voltage between the pins 4 - 3

Check mark

Rotation command voltage between the pins 4 - 2

Check mark

Keep operation off and power off. Connect the connector S70 or S71.

Check mark

4 rotation pulses (0 ~ 15 VDC) at the pins 4 - 1 when the fan motor is rotated 1 turn by hand

Check mark

Fuse melted?

Check mark

Outdoor fan motor functioning properly?

Run this procedureArrow right

Electronic Expansion Valve Check

Check mark

EV connector correctly connected to the PCB

Check mark

Does the EV generate a latching sound when power is turned off and on again?

Check mark

Continuity check using a multimeter after disconnecting the connector if no latching sound is generated

Check mark

Check the continuity between the pins

Check mark

EV coil fault if no continuity between the pins

Check mark

Outdoor unit PCB (main PCB) fault if continuity is confirmed

Check mark

Sign off on the electronic expansion valve check

Run this procedureArrow right

Thermistor Resistance Check

Check mark

Warning: Disconnect the connectors of the thermistors from the PCB before proceeding

Check mark

Thermistors disconnected from the PCB?

Check mark

Measure the resistance of the room temperature thermistor

Check mark

Note: The data is for reference purpose only

Check mark

Is the room temperature thermistor soldered on a PCB?

Check mark

If yes, remove the PCB from the control PCB to measure the resistance

Check mark

Is the connector of indoor heat exchanger thermistor soldered on a PCB?

Check mark

If yes, remove the thermistor and measure the resistance

Check mark

Measure the resistance of the indoor heat exchanger thermistor

Run this procedureArrow right
