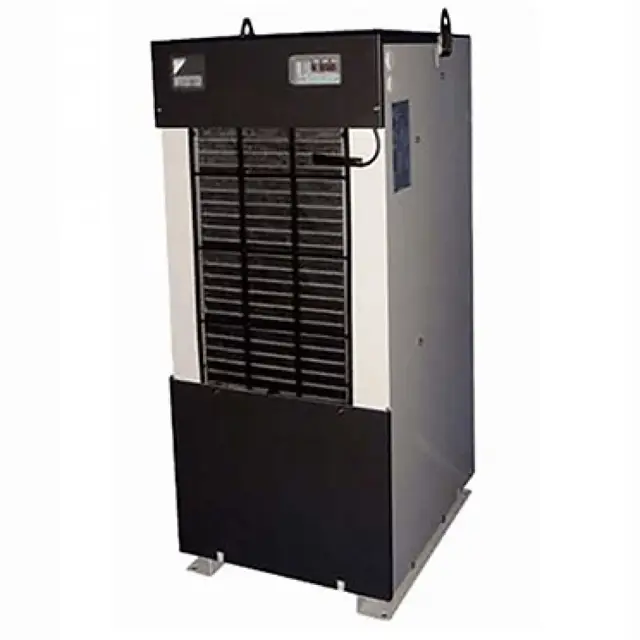

Daikin Oil Cooling Unit AKZ438

Create an account to install this asset package.

Maintenance Plans for Daikin Oil Cooling Unit Model AKZ438

Integrate maintenance plans directly into your work orders in MaintainX.

2 Weekly Air Filter Maintenance

Be sure to wash the air filter with water at 40˚C or lower temperature every two weeks.

If the air filter is clogged with dust, the wind volume reduces, resulting in capacity deterioration. Also, the compressor’s protection device is activated, hindering smooth operation. Furthermore, it causes power consumption increase.

Operating the unit without the air filter causes a fault.

To remove the air filter, hold the bottom of the filter with both hands, and push it up while warping it forward.

NOTE! If the air filter is clogged, the cooling capacity deteriorates, resulting in excess power consumption. Clean the air filter periodically to save power consumption.

Air filter washed with water at 40˚C or lower temperature?

Air filter free of dust and clogs?

Air filter properly reinstalled?

Sign off on the air filter maintenance

Run this procedure

6 Monthly Suction Strainer Cleaning

Warning: Ensure the pump is turned off and disconnected from power source before starting the cleaning process.

Is the pump flow rate normal before cleaning?

Is there any abnormal sound from the pump before cleaning?

Upload a photo of the suction strainer before cleaning

Start the cleaning process

Is the pump flow rate normal after cleaning?

Is there any abnormal sound from the pump after cleaning?

Upload a photo of the suction strainer after cleaning

Sign off on the suction strainer cleaning

Run this procedure

Oil Cooling Unit Maintenance

1. Condenser

• If the condenser becomes extremely dirty, clean it with a brush, air blower, etc.

* (When cleaning the condenser fins, wear gloves. Otherwise, you may be injured by the sharp edges.)

2. Exterior

• Wipe the exterior surface with a dry cloth. Never splash water over it.

• To clean the exterior, do not use a brush, polish powder, acid, solvent (benzine etc.) or hot water. Using such substances causes the paint to peel off.;

Run this procedure

1 Daily Oil Cooling Unit Maintenance

Oil pollution at NAS10 or lower level?

Normal oil level in the oil tank?

No air bubbles in the oil?

Inside of the oil tank clean?

Main machine oil piping not blocked (fully closed)?

No oil leak in the oil piping?

Power supply voltage within range?

No abnormal sound from the compressor, fan and oil pump during operation?

Oil Cooling Unit does not abnormally shake during operation?

Run this procedure

Parts for Daikin Oil Cooling Unit AKZ438

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

Machine Temperature Tuning Thermistor (5 m)

AKZ8–OP–K5
