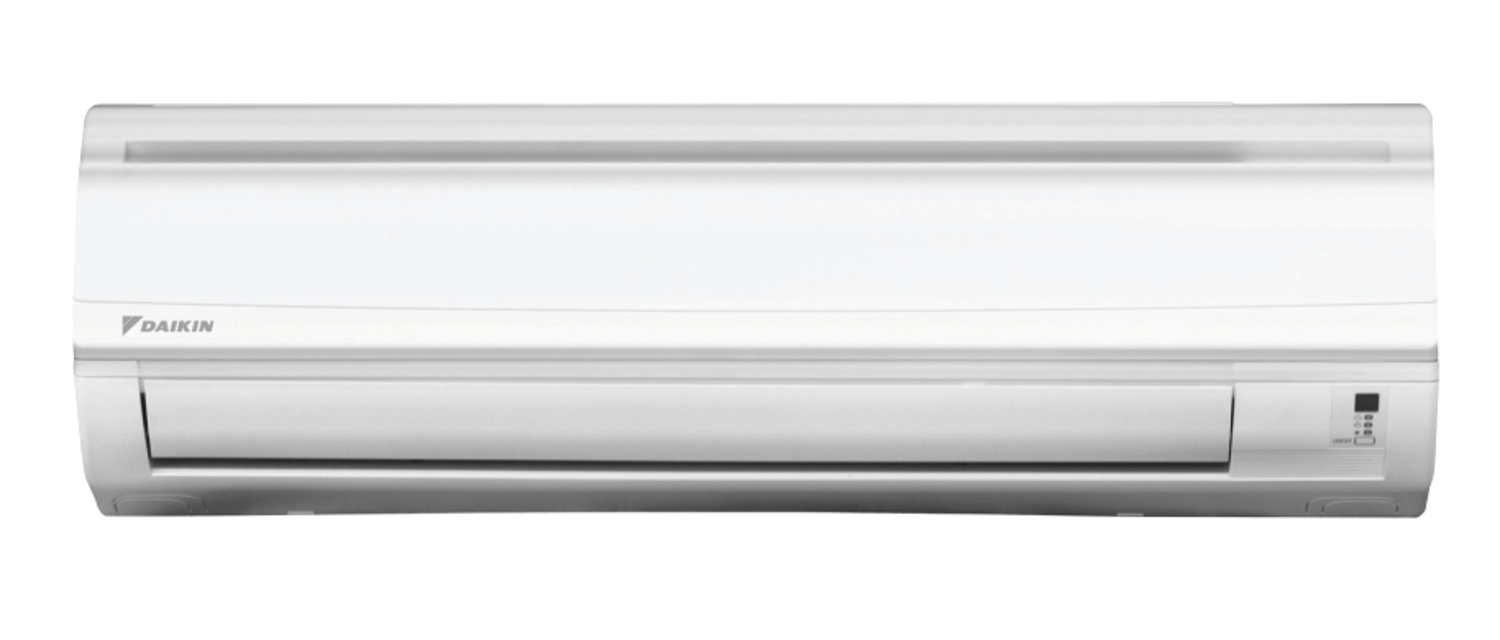

Daikin Air Conditioner Indoor Unit FTS20JEVIK

Warning: For trained personnel only

Take off the Bio Filter with bacteriostatic, virustatic functions

Upload a photo of the cleaned or replaced filter

Set the air filter and Bio Filter with bacteriostatic, virustatic functions as they were and close the front panel

CAUTION: Please use this Bio Filter during dry season such as winter

Storage, handling and disposal methods

Bio Filter stored in a cool place avoiding direct sunlight

Warning: Handle the filters with care to avoid damage.

Set the air filter and Bio Filter back in place

CAUTION: Use the Bio Filter during dry seasons such as winter.

Storage, handling and disposal methods

Describe the storage location for the Bio Filter

CAUTION: Avoid direct contact of any coil treatment cleaners on plastic part. This may cause plastic part to deform as a result of chemical reaction.

Don't touch the metal parts of the indoor unit. It may cause an injury.

When removing or attaching the front panel, support the panel securely with hand to prevent it from falling.

For cleansing, do not use hot water above 40°C, benzine, gasoline, thinner, nor other volatile oils, polishing compound, scrubbing brushes, nor other hand stuff.

Remove any dust adhering to the filter by using a vacuum cleaner or wash in lukewarm water (below 40°C/104°F) with a neutral cleaning detergent

Rinse the filter well and dry before placing it back onto the unit

Do not use gasoline, volatile substances or chemicals to clean the filter

Open the front panel. Hold the panel at the recesses on the main unit (2 recesses on right and left sides) and lift it until it stops

Remove the front panel. While lifting the front panel further, slide it to the right and pull it to the front side. The left rotating shaft is detached. Slide the right rotating shaft to the left and pull it to the front side to remove it

1. Clean any dirt or dust on the grille or panel by wiping it with a soft cloth soaked in lukewarm water (below 40°C/104°F) and a neutral detergent solution

2. Do not use gasoline, volatile substances or chemicals to clean the indoor unit;
