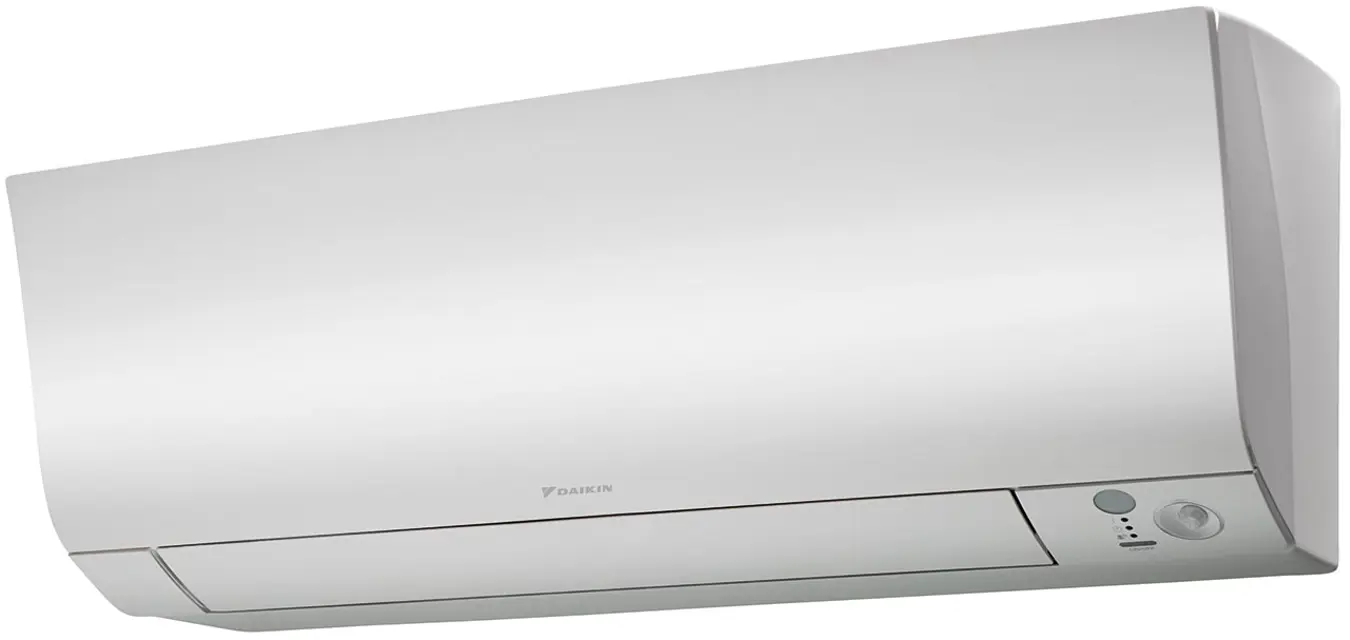

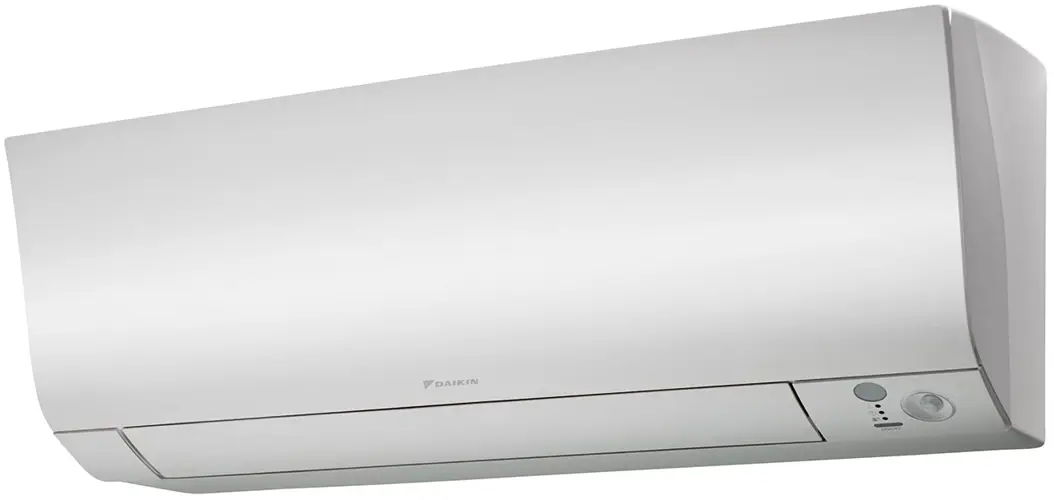

Daikin Air Conditioner FTXM60M2V1B

Warning: This maintenance check requires trained personnel with PPE!

Open the front panel and pull out the air filters

Take off the titanium apatite photocatalytic air-purifying filters from the tabs

Choose the type of service done

Clean the filter by vacuuming dust, and soak in lukewarm water or water for about 10 to 15 minutes if very dirty

After washing, shake off remaining water and let them dry in the shade

Replace the filter from the tabs and prepare a new one

Dispose of the old filter as non-flammable waste

Insert the titanium apatite photocatalytic air-purifying filters as they were

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

CAUTION: Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

CAUTION: When removing or attaching the front panel, use a robust and stable stool and watch your steps carefully

CAUTION: When removing or attaching the front panel, support the panel securely with hand to prevent it from falling

CAUTION: After cleaning, make sure that the front panel is securely fixed

If front panel is dirty, proceed with the following steps

How to open the front panel: Hold both ends of the front panel, and then pull to open it

How to close the front panel: Press the front panel at both sides to close it

Warning: Use batteries of the same type and replace both old batteries together.

If the system is not used for a long time, take the batteries out.

Batteries removed when not in use?

The batteries will last for approx. 1 year. If the remote controller display begins to fade and the degradation of reception performance occurs within a year, replace both batteries with new, size AAA.LR03 (alkaline).

Batteries replaced with new, size AAA.LR03 (alkaline)?

The attached batteries are provided for the initial use of the system. The usable period of the batteries may be short depending on the manufactured date of the air conditioner.

Sign off on the battery replacement

Warning: Do not touch the aluminium fins by bare hand at the time of dismounting or mounting the filter

Air Conditioner Air Filter cleaned

Filter tab at the center of each air filter pushed upwards, then pulled down

Air filters washed with water or cleaned with vacuum cleaner

Titanium apatite photocatalytic air-purifying filter removed

Was the dust difficult to remove?

CAUTION: Before cleaning, be sure to stop the operation and turn off the circuit breaker

Do not touch the aluminum fins of the indoor unit. If you touch those parts, this may cause an injury

Clean Indoor unit, Outdoor unit and Remote controller if bothered by dirt

Check that the base, stand and other fittings of the outdoor unit are not decayed or corroded

Check that nothing blocks the air inlets and the outlets of the indoor unit and the outdoor unit

Check that the drain comes smoothly out of the drain hose during COOL or DRY operation

If no drain water is seen, water may be leaking from the indoor unit. Stop operation and consult the service shop if this is the case
