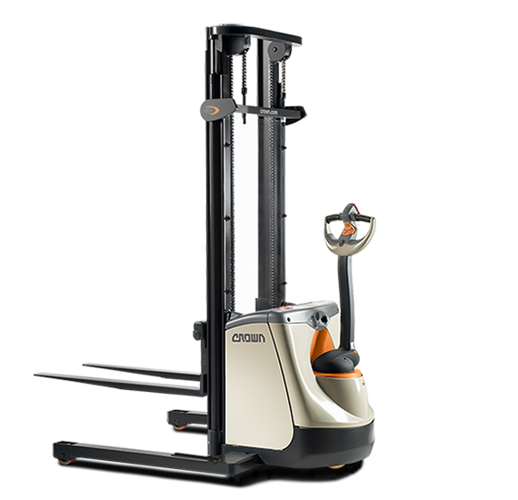

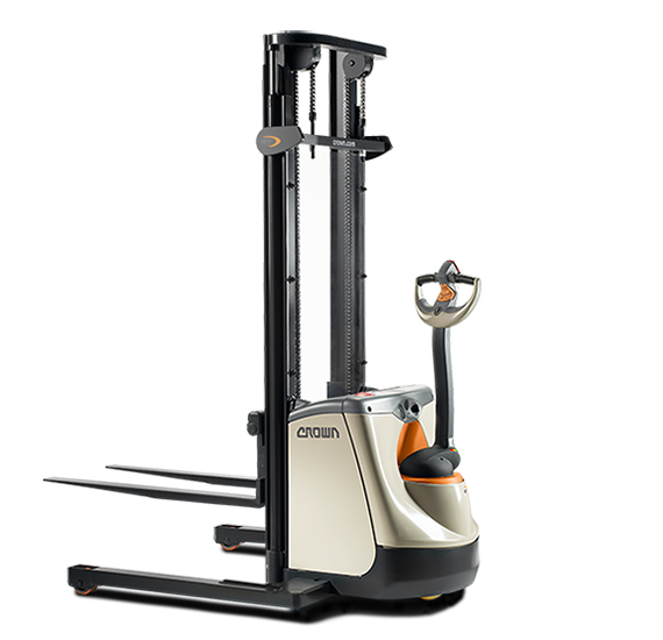

Crown Straddle Stacker ST3000-20

Warning: Only trained personnel should perform this procedure

Turn the truck OFF and disconnect the battery

Use the correct size and weight battery

Never let anything metal touch the top of the cells. Use an insulator (such as plywood) when necessary

Use an approved spreader bar to place a battery in, or remove it from, the battery compartment

Adjust the spreader bar hooks to fit the battery

Turn the truck ON and check truck operation

BATTERY SIZE IS IMPORTANT: Make certain you use the correct size, weight and type of battery

Check if the truck has a single industrial battery or a battery pack

Check all batteries daily unless sealed, maintenance-free batteries have been selected

Access to an AC electrical outlet for built-in charger

Turn the truck off. Do not disconnect the battery

Use an extension cord less than 7.5 meters (25 ft) long, with a wire size of 16 AWG or heavier

Plug one end of the extension cord into the charging socket on the console

Plug the other end of the cord into the AC outlet

Check the charging lights on the console

Test drive in an uncongested area

Try all the hydraulic functions

Operate the truck slowly in both directions

Operate through the full speed range in both forward and reverse

If the braking distance is too long to stop safely, don't use the truck

Check your truck before starting work. You must make sure your truck is safe to use.

Vent caps are in place, unless sealed, maintenance-free batteries have been selected

All wheels are in good condition

Both forks are secure and not bent, cracked or badly worn

All lift chains are free from damage

The load backrest is in place and secure, if your truck has that option

No signs of hydraulic leaks under the truck
