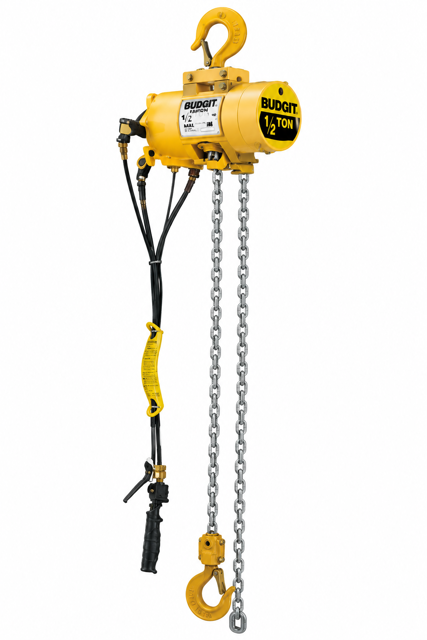

Budgit Air Hoist 12020C

Does the chain feed smoothly into and away from the sprocket in both directions?

Is the chain clean and properly lubricated?

Describe any issues observed with chain binding, jumping, or noise.

Chain and Mating Parts Inspection

Inspect chain and mating parts for wear, distortion, or other damage.

Describe any wear, distortion, or damage found on the chain or mating parts.

Anchor End and Connection Inspection

Check for damage to the following parts

Check for bent or distorted hook

Is the hook opened beyond the dimension given in Figure 5-3?

Lubricate hook swivel and pivot points if necessary

Replace hook if opened beyond specified dimensions

Sprocket and Bearings Inspection

Check sprocket and bearings in lower block for freedom of movement and signs of damage

Lubricate sprocket and bearings if necessary

Replace damaged sprocket or bearings

Inspect Chain Anchor Connections

Inspect chain anchor connections at side of hoist frame and at upper hook or lug mounting bracket

Is the hoist brake properly adjusted and operational?

Ensure hoist is in normal suspended position

Identify the appropriate regulator screw for hoisting or lowering speed adjustment

Describe the current hoist speed settings

Turn the regulator screw slightly in either direction while operating hoist under load

Is the hoist speed adjusted to the desired level?

Ensure heads of adjusting screws do not extend beyond outer surface of housing

Set up a regular schedule for chain lubrication based on operating conditions.

Gather necessary lubricants: Bar and chain Oil (LUBRIPLATE or equal) and S.A.E. 20 motor oil.

Clean the chain thoroughly with an oil solvent.

Apply a good grade of S.A.E. 20 motor oil to the chain.

Wipe off excess oil from the chain.

Is the hoist operating under hot and dirty conditions?
