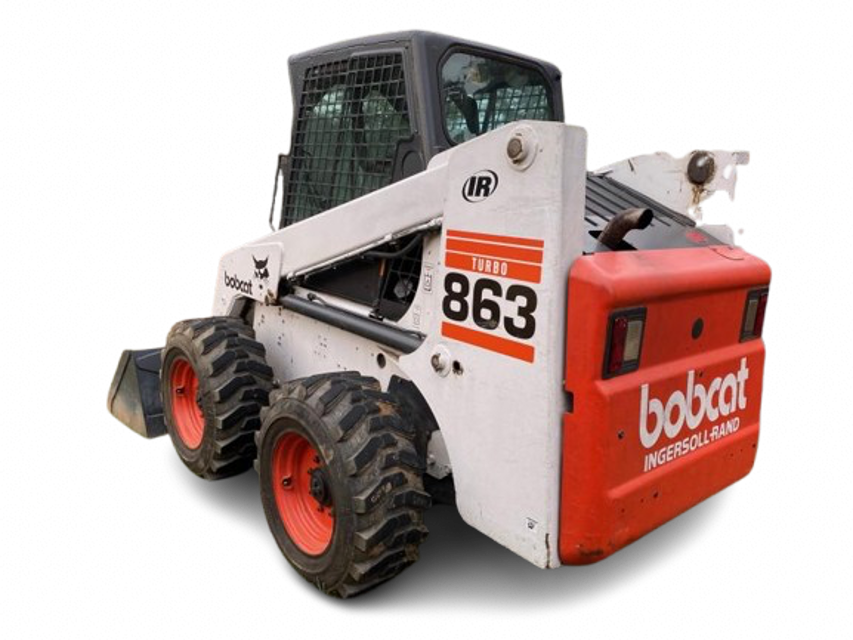

Bobcat Loader 863

Steering Lever Pivots lubricated with multipurpose lithium based grease?

King Pins lubricated with multipurpose lithium based grease (Aws Machines Only)?

Engine / Hydraulic Drive Belt checked for wear or damage. Adjusted or replaced as needed?

Fan Drive Gearbox fluid level checked and added if required?

Condition and tension of Other Drive Belts (Hydrostatic pump, water pump, alternator, and air conditioner - if equipped) checked. Adjusted or replaced as needed?

Function of Lift Arm By-Pass control in BISC checked?

Hydraulic system filter replaced?

Hydrostatic system filter replaced?

Reservoir breather cap replaced?

Steering Valve Inline Filter replaced (Aws Only)?

Oil in Hydrostatic Motor Carrier replaced (Track Machines Only)?

Sign off on the 500 Hours Loader Maintenance

NOTE: The following steps are done before starting the loader

Check level of engine oil and add as needed. Do not overfill.

Change oil and filter after first 50 Hrs

Check condition engine air filter indicator and/ or display. Service only when required. Do not use compressed air to clean elements

Check for leaks and damaged components of engine air system

Clean debris from grill, oil cooler and radiator of engine cooling system. Check coolant level cold; add coolant mixture if required

Sign off on the 10 Hours Engine Maintenance

Empty spark chamber. (If equipped Spark Arrestor Muffler.)

Check battery for damage, hold down clamps, cables, connections and electrolyte level. Add distilled water as needed

Lubricate drive line Engine-to-Pump Coupler with multipurpose lithium based grease. (If equipped.)

Sign off on the loader maintenance

Replaced fluid on Hydraulic Reservoir

Replaced fluid on Final Drive Transmission (Chaincase On Wheel Machines Only)

Replaced fluid (If required) in Track Roller, Idler Assemblies (Track Machines Only)

Replaced Drive Motor Case Drain Filter (If equipped)

Repacked wheel bearings, greased internal splines in hub yoke. (Dealer Service Only) Wheel Bearing & Outer Splines (Aws Only)

Sign off on the 1000 Hours Loader Maintenance
