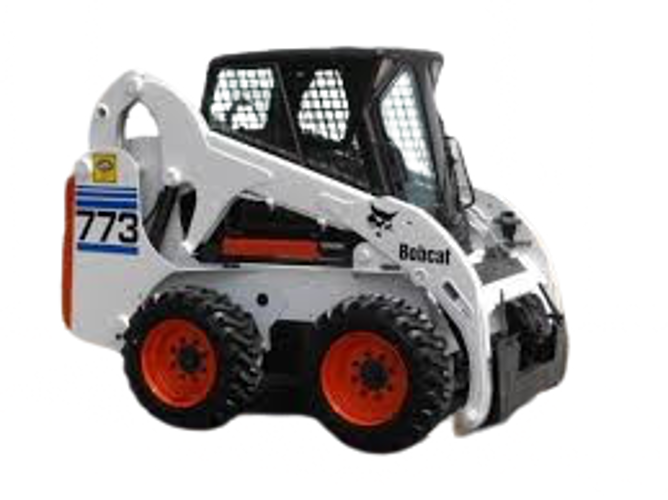

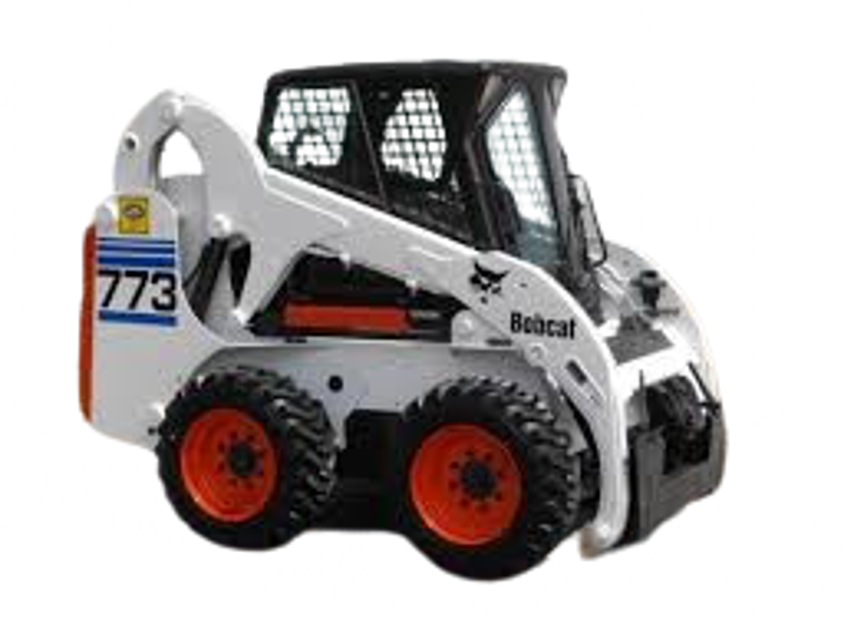

Bobcat Loader 773

Replaced fluid on Hydraulic Reservoir

Replaced fluid on Final Drive Transmission (Chaincase On Wheel Machines Only)

Replaced fluid (If required) in Track Roller, Idler Assemblies (Track Machines Only)

Replaced Drive Motor Case Drain Filter (If equipped)

Repacked wheel bearings, greased internal splines in hub yoke. (Dealer Service Only) Wheel Bearing & Outer Splines (Aws Only)

Sign off on the 1000 Hours Loader Maintenance

Steering Lever Pivots lubricated with multipurpose lithium based grease?

King Pins lubricated with multipurpose lithium based grease? (Aws Machines Only)

Engine / Hydraulic Drive Belt checked for wear or damage. Adjusted or replaced as needed?

Fan Drive Gearbox fluid level checked and added if required?

Condition and tension of Other Drive Belts (Hydrostatic pump, water pump, alternator, and air conditioner - if equipped.) checked. Adjusted or replaced as needed?

Function of Lift Arm By-Pass control in BISC checked?

Sign off on the 250 Hours Loader Maintenance

Replacement of filter in Fan / Hydraulic / Hydrostatic System

Replacement of reservoir breather cap

Replacement of Steering Valve Inline Filter (Aws Only)

Replacement of oil in Hydrostatic Motor Carrier (Track Machines Only)

Sign off on the 500 Hours Loader Maintenance

NOTE: The following steps are done before starting the loader

Check level of engine oil and add as needed. Do not overfill.

Change oil and filter after first 50 Hrs

Check condition engine air filter indicator and/ or display. Service only when required. Do not use compressed air to clean elements

Check for leaks and damaged components of engine air system

Clean debris from grill, oil cooler and radiator of engine cooling system.

Check coolant level cold; add coolant mixture if required

Sign off on the 10 Hours Engine Maintenance

Remove trapped water in fuel filter

Lubricate Bob-Tach Pivot & Wedges

Lubricate Steering Cylinders (Aws Machines Only)

Check function of Seat Belt, Seat Bar And Control Interlocks

Clean dirt and debris from moving parts of Seat Belt, Seat Bar And Control Interlocks

Check for correct function of BISC
