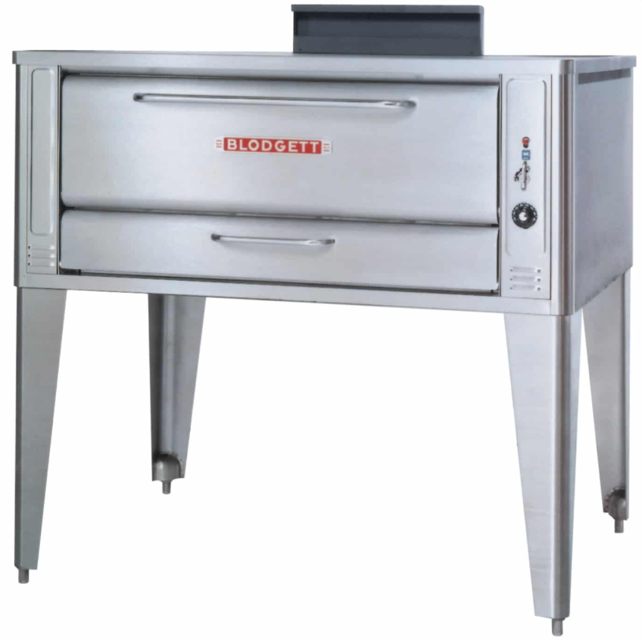

Blodgett Oven 966

Open combustion compartment door and remove screws holding the pilot burner

Move pilot burner assembly out of the way

Remove the two bolts holding the burner manifold to the brackets

Remove the two burner manifold brackets and the combustion compartment door

Check that all parts are removed

Open combustion compartment door

Remove screws holding the pilot burner to the bracket on the right hand main burner

Loosen the hex head screw on the pilot burner bracket

Disconnect the gas supply tubing from the pilot burner

Inspect the pilot burner for any visible damage

Check the condition of the gas supply tubing

Remove the left corner trim panel and column

Remove the two bolts in the left counter weight

Remove the retaining rings and door arms

Remove the two bolts in the left hinge assembly

Remove the inner bolt on the right side of the door

Loosen the outer bolts on the right side of the door

Slide the right hinge pin to the left

Note the number of spacer washers used on the right hinge pin

Remove left hand door support arm

Remove the inside bolt on the left hand hinge pin

Loosen the outer bolt on the left hand hinge pin

Pull the left side of the door forward to remove

Check for any damage to the hinge pins

Ensure all bolts and parts are accounted for

WARNING!!: DO NOT spray the oven with a water jet.

Saturate a cloth with light oil and wipe the oven exterior when it is cold.

Dry the oven with a clean cloth.

Apply non-toxic industrial stainless steel cleaner when the oven is cold.

Rub with the grain of the metal.

Brush residue from beneath doors.
