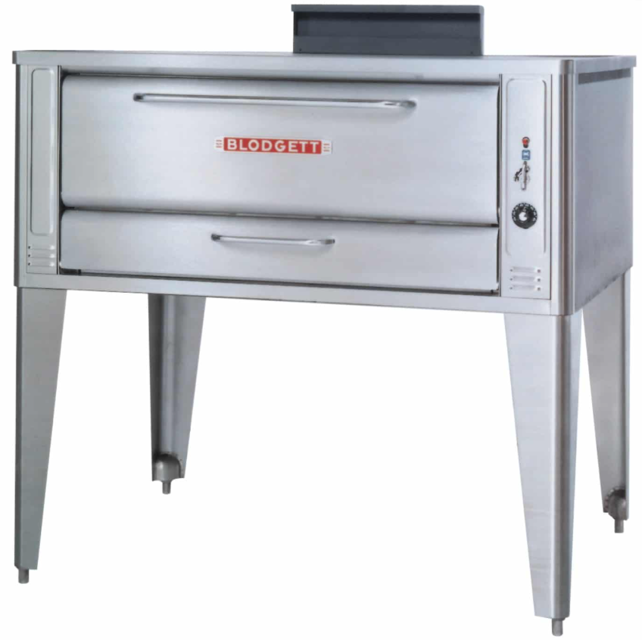

Blodgett Oven 1048-B

Remove thermostat knob, main manual control valve handle and control panel cover

Open oven door and remove the thermostat bulb guard

Pilot Tubing and Burner Disconnection

Disconnect pilot tubing at the safety valve on the control stack

Open combustion compartment door

Remove screws holding the pilot burner to the bracket on the right hand main burner

Disconnect safety valve capillary from pilot burner

Open combustion compartment door

Remove screws holding the pilot burner to the bracket on the right hand main burner

Loosen the hex head screw on the pilot burner bracket

Disconnect the gas supply tubing from the pilot burner

Inspect the pilot burner for any visible damage

Check the condition of the gas supply tubing

Open combustion compartment door and remove screws holding the pilot burner

Move pilot burner assembly out of the way

Remove the two bolts holding the burner manifold to the brackets

Remove the two burner manifold brackets and the combustion compartment door

WARNING!!: DO NOT spray the oven with a water jet.

Saturate a cloth with light oil and wipe the oven exterior when it is cold.

Dry the oven with a clean cloth.

Clean stainless surfaces with a non-toxic industrial stainless steel cleaner.

Apply the cleaner when the oven is cold, and always rub with the grain of the metal.

Brush residue from beneath doors.

Remove left hand door support arm

Remove the inside bolt on the left hand hinge pin

Loosen the outer bolt on the left hand hinge pin

Pull the left side of the door forward to remove

Ensure all removed parts are accounted for

Is the door removed without any damage?
