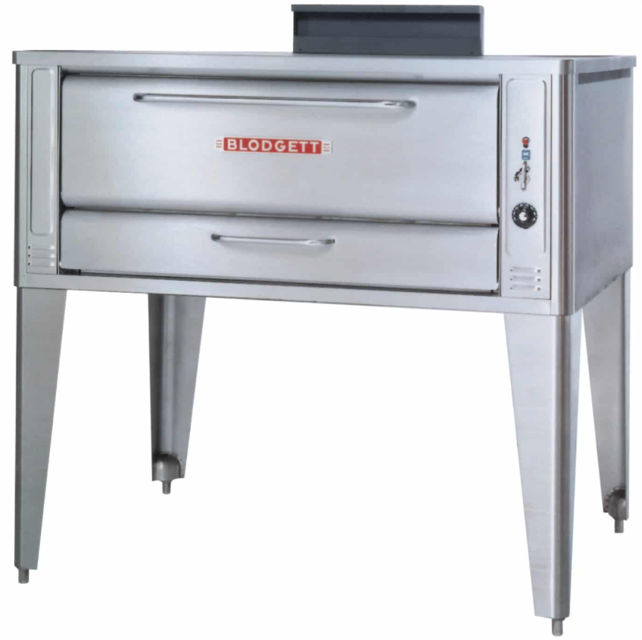

Blodgett Oven 1060BL

Remove left hand door support arm

Remove the inside bolt on the left hand hinge pin

Loosen the outer bolt on the left hand hinge pin

Pull the left side of the door forward to remove

Check that all removed parts are accounted for

WARNING!!: DO NOT spray the oven with a water jet.

Saturate a cloth with light oil and wipe the oven exterior when it is cold.

Dry the oven with a clean cloth.

Apply non-toxic industrial stainless steel cleaner when the oven is cold.

Rub with the grain of the metal.

Brush residue from beneath doors.

Open combustion compartment door and remove screws holding the pilot burner

Move pilot burner assembly out of the way

Remove the two bolts holding the burner manifold to the brackets

Remove the two burner manifold brackets and the combustion compartment door

Open combustion compartment door

Remove screws holding the pilot burner to the bracket on the right hand main burner

Loosen the hex head screw on the pilot burner bracket

Disconnect the gas supply tubing from the pilot burner

Inspect the pilot burner for any visible damage

Check the condition of the gas supply tubing

Remove thermostat knob, main manual control valve handle and control panel cover

Open oven door and remove the thermostat bulb guard

Disconnect pilot tubing at the safety valve on the control stack

Open combustion compartment door

Remove screws holding the pilot burner to the bracket on the right hand main burner
