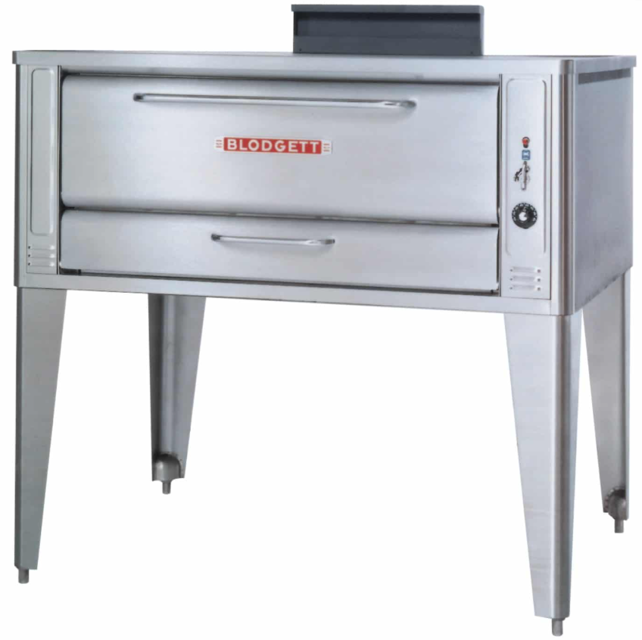

Blodgett Oven 1060B

WARNING!!: DO NOT spray the oven with a water jet.

Saturate a cloth with light oil and wipe the oven exterior when it is cold.

Dry the oven with a clean cloth.

Clean stainless surfaces with a non-toxic industrial stainless steel cleaner.

Apply the cleaner when the oven is cold, and always rub with the grain of the metal.

Brush residue from beneath doors.

Remove main manual control valve handle

Thermostat and Pilot Tubing Disconnection

Remove the thermostat bulb guard

Disconnect pilot tubing at the safety valve on the control stack

Remove left hand door support arm

Remove the inside bolt on the left hand hinge pin

Loosen the outer bolt on the left hand hinge pin

Pull the left side of the door forward to remove

Check that all removed parts are accounted for

Inspect the removed door for any damage

Clean the area around the hinge pins

Dispose of any waste materials properly

Open combustion compartment door

Remove screws holding the pilot burner to the bracket on the right hand main burner

Loosen the hex head screw on the pilot burner bracket

Disconnect the gas supply tubing from the pilot burner

Is the combustion compartment door securely closed after removal?

Inspect the removed pilot burner for any visible damage

Open combustion compartment door

Remove screws holding the pilot burner to the bracket on the right hand main burner

Move pilot burner assembly out of the way

Remove the two bolts holding the burner manifold to the brackets of the burner compartment

Remove the two burner manifold brackets

Remove the combustion compartment door
