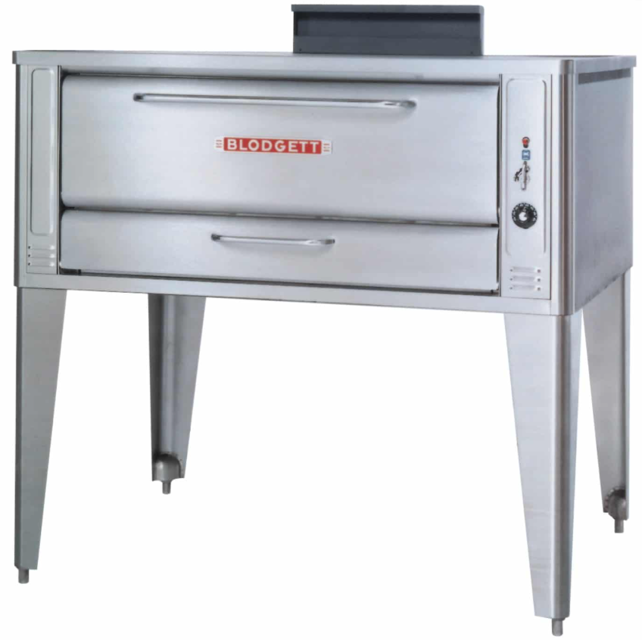

Blodgett Oven 901

Open combustion compartment door and remove screws holding the pilot burner

Move pilot burner assembly out of the way

Remove the two bolts holding the burner manifold to the brackets

Remove the two burner manifold brackets and the combustion compartment door

Remove thermostat knob, main manual control valve handle and control panel cover

Open oven door and remove the thermostat bulb guard

Pilot Tubing and Burner Disconnection

Disconnect pilot tubing at the safety valve on the control stack

Open combustion compartment door

Remove screws holding the pilot burner to the bracket on the right hand main burner

Disconnect safety valve capillary from pilot burner

WARNING!!: DO NOT spray the oven with a water jet.

Saturate a cloth with light oil and wipe the oven exterior when it is cold.

Dry the oven with a clean cloth.

Apply non-toxic industrial stainless steel cleaner when the oven is cold.

Rub with the grain of the metal.

Brush residue from beneath doors.

Remove the left corner trim panel and column

Remove the two bolts in the left counter weight

Remove the retaining rings and door arms

Remove the two bolts in the left hinge assembly

Remove the inner bolt on the right side of the door

Loosen the outer bolts on the right side of the door

Slide the right hinge pin to the left

Note the number of spacer washers used on the right hinge pin

Open combustion compartment door

Remove screws holding the pilot burner to the bracket on the right hand main burner

Loosen the hex head screw on the pilot burner bracket

Disconnect the gas supply tubing from the pilot burner

Is the combustion compartment door properly secured after removal?

Are all removed parts accounted for?
