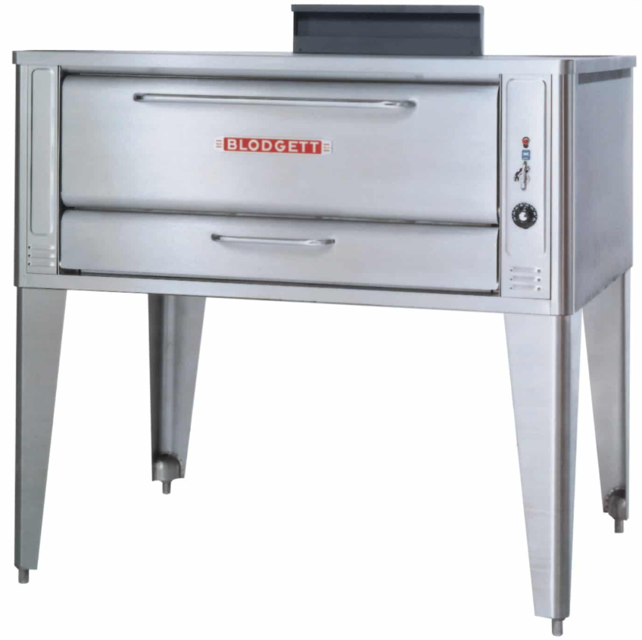

Blodgett Oven 911-P

Open combustion compartment door

Remove screws holding the pilot burner to the bracket on the right hand main burner

Loosen the hex head screw on the pilot burner bracket

Disconnect the gas supply tubing from the pilot burner

Is the combustion compartment door securely closed after removal?

Inspect the removed pilot burner for any visible damage

Open combustion compartment door and remove screws holding the pilot burner

Move pilot burner assembly out of the way

Remove the two bolts holding the burner manifold to the brackets

Remove the two burner manifold brackets and the combustion compartment door

Check that all parts are removed and accounted for

Inspect the removed burners for any signs of damage or wear

Clean the area around the burner compartment

WARNING!!: DO NOT spray the oven with a water jet.

Saturate a cloth with light oil and wipe the oven exterior when it is cold.

Dry the oven with a clean cloth.

Apply non-toxic industrial stainless steel cleaner when the oven is cold.

Rub with the grain of the metal.

Brush residue from beneath doors.

Remove left hand door support arm

Remove the inside bolt on the left hand hinge pin

Loosen the outer bolt on the left hand hinge pin

Pull the left side of the door forward to remove

Is the door completely removed without any obstructions?

Describe any issues encountered during removal

Remove main manual control valve handle

Thermostat and Pilot Tubing Disconnection

Remove the thermostat bulb guard

Disconnect pilot tubing at the safety valve on the control stack
