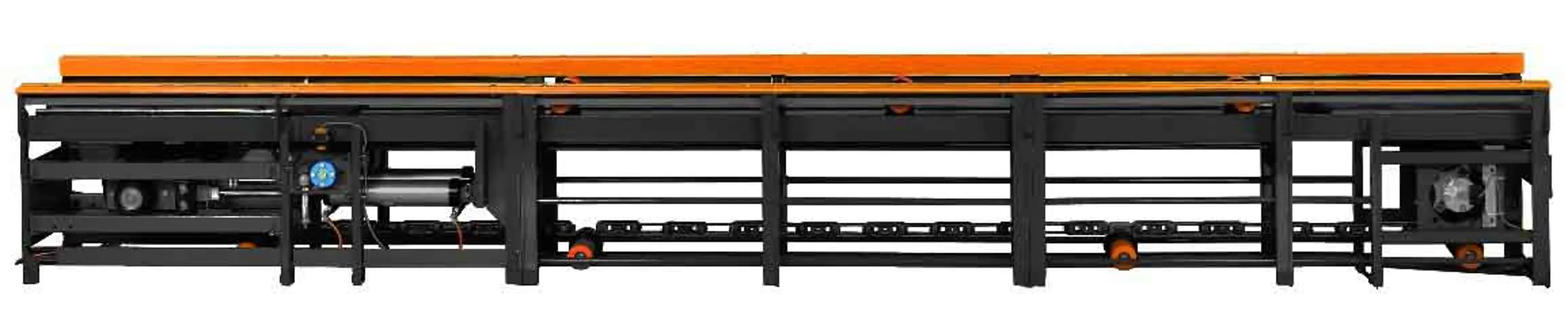

Belanger Car Wash Conveyor DuraTrans® XDW

The manufacturer pre-fills the HECO gearbox with EPPICO GL-5 85W 140 gear oil.

Check if the proper amount of lubricant is maintained in the HECO gearbox

If the level is lower, refill with EPPICO GL-5 85W 140 or equivalent gear oil.

See information on HECO Gear Reducer.

The manufacturer pre-fills the electric drive gearbox with ISO 220 mineral oil.

Check if the proper amount of lubricant is maintained in the electric drive gearbox

Sign off on the monthly car wash conveyor maintenance

HECO planetary speed reducers may be lubricated as a self-contained unit (standard hydraulic motor), or as an integral part of the hydraulic system (bearing less motor).

◻ When installed as a self-contained unit, ensure adequate ventilation is provided to allow for lubricant expansion.

◻ In applications where the speed reducer is lubricated as a self-contained, horizontal unit, it is recommended that the unit be half-filled with EP oil (see the chart for the amount and proper grade of gear oil).

◻ Self-contained, vertical installations (output shaft down) require the unit to be filled to the centerline of the upper planetary gear train. For self-contained vertical installations (output shaft up) consult HECO.

◻ The oil should be changed after the first 50 hours and 100 hours of operation, and every 1000 hours thereafter.

◻ Oil should be drained while the unit is at operating temperature.

◻ The unit should be cleaned with flushing oil (use of solvents should be avoided).

HECO planetary speed reducers may be lubricated as a self-contained unit (standard hydraulic motor), or as an integral part of the hydraulic system (bearing less motor).

◻ When installed as a self-contained unit, ensure adequate ventilation is provided to allow for lubricant expansion.

◻ In applications where the speed reducer is lubricated as a self-contained, horizontal unit, it is recommended that the unit be half-filled with EP oil (see the chart for the amount and proper grade of gear oil).

◻ Self-contained, vertical installations (output shaft down) require the unit to be filled to the centerline of the upper planetary gear train. For self-contained vertical installations (output shaft up) consult HECO.

◻ The oil should be changed after the first 50 hours and 100 hours of operation, and every 1000 hours thereafter.

◻ Oil should be drained while the unit is at operating temperature.

◻ The unit should be cleaned with flushing oil (use of solvents should be avoided).

Warning: Proper chain tension is crucial. Loose chain can cause serious damage.

Note: The Tension Cylinder Assembly MUST NOT be at either extreme end of the cylinder stroke.

Note: Due to natural wear of the chain, it will become necessary to remove chain link(s) in order to maintain proper tension.

Visually inspect plastic Roller rollers for damage

Check overall performance for any abnormalities on the first few vehicles washed each day

Sign off on the daily car wash conveyor maintenance
