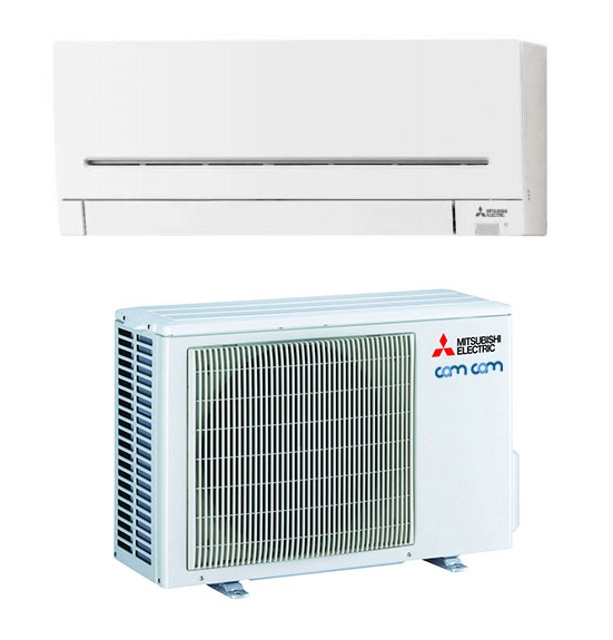

Mitsubishi Outdoor Unit Split-Type Air Conditioner MUZ-AP35VGH

Need answers fast?
Explore the manual using AI.

Mitsubishi Outdoor Unit Split-Type Air Conditioner MUZ-AP35VGH
Mitsubishi Outdoor Unit Split-Type Air Conditioner MUZ-AP35VGH

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

PDF MANUAL

Manual for Mitsubishi Outdoor Unit Split-Type Air Conditioner MUZ-AP35VGH

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Mitsubishi Outdoor Unit Split-Type Air Conditioner MUZ-AP35VGH

Mitsubishi Outdoor Unit Split-Type Air Conditioner MUZ-AP35VGH

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Outdoor Unit Split-Type Air Conditioner Model MUZ-AP35VGH

Integrate maintenance plans directly into your work orders in MaintainX.

Open Phase Check

Check mark

Warning: Ensure the connector between the compressor and the power module (IC700) is disconnected before starting the procedure.

Check mark

Inverter activation successful?

Check mark

Measure the voltage balance between the terminals. Expected range is 50 - 130 V.

Check mark

Operation method: Start cooling or heating operation by pressing EMERGENCY OPERATION switch on the indoor unit.

Check mark

Measurement point: Measure AC voltage between the lead wires at 3 points.

Check mark

Voltage between BLK (U)-WHT (V)

Check mark

Voltage between BLK (U)-RED (W)

Check mark

Voltage between WHT(V)-RED (W)

Check mark

Note: 1. Output voltage varies according to power supply voltage. 2. Measure the voltage by analog type tester. 3. During this check, LED of the inverter P.C. board blinks 9 times.

Run this procedureArrow right

Compressor Winding Check

Check mark

Warning: Disconnect the connector between the compressor and the power module (IC700) before proceeding

Check mark

Ohmmeter zeroed before measurement

Check mark

Resistance measurement between BLK-WHT

Check mark

Resistance measurement between BLK-RED

Check mark

Resistance measurement between WHT-RED

Check mark

Judgement

Check mark

Sign off on the compressor winding check

Run this procedureArrow right

Cabinet Removal

Check mark

Remove the screw fixing the service panel

Check mark

Pull down the service panel and remove it

Check mark

Disconnect the power supply cord and indoor/outdoor connecting wire

Check mark

Remove the screws fixing the top panel

Check mark

Remove the top panel

Check mark

Remove the screws fixing the cabinet

Check mark

Remove the cabinet

Check mark

Remove the screws fixing the back panel

Check mark

Remove the back panel

Run this procedureArrow right

Compressor Operation Time Check

Check mark

Connect the compressor and activate the inverter

Check mark

Compressor connected and inverter activated

Check mark

Start heating or cooling operation by pressing EMERGENCY OPERATION switch on the indoor unit

Check mark

Heating or cooling operation started

Check mark

Time from the start of compressor to the stop of compressor due to overcurrent

Check mark

Sign off on the compressor operation time check

Run this procedureArrow right

Outdoor Fan Motor Removal

Check mark

(1) Remove the cabinet and panels. (Refer to section 1.)

Check mark

(2) Disconnect the following connectors:

Check mark

<Inverter P.C. board>

Check mark

CN931, CN932 (Fan motor)

Check mark

(3) Remove the propeller fan nut.

Check mark

(4) Remove the propeller fan.

Check mark

(5) Remove the screws fixing the fan motor.

Check mark

(6) Remove the fan motor.;

Run this procedureArrow right
