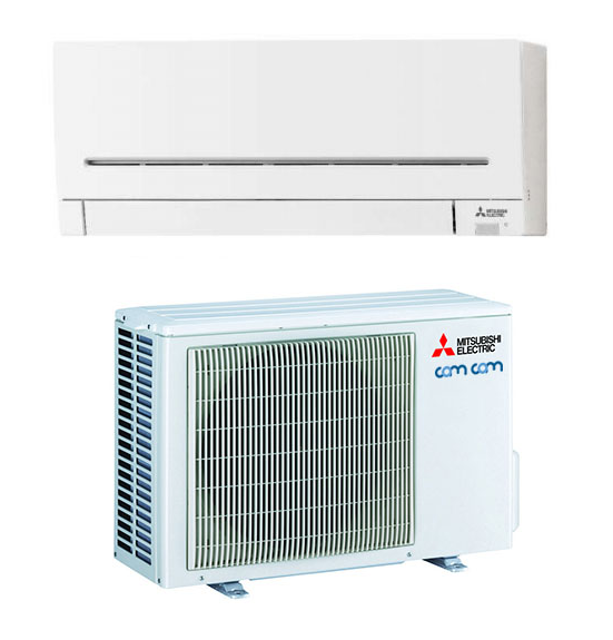

Mitsubishi Outdoor Unit Split-Type Air Conditioner MUZ-AP50VG

Need answers fast?
Explore the manual using AI.

Mitsubishi Outdoor Unit Split-Type Air Conditioner MUZ-AP50VG
Mitsubishi Outdoor Unit Split-Type Air Conditioner MUZ-AP50VG

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Mitsubishi Outdoor Unit Split-Type Air Conditioner MUZ-AP50VG

Mitsubishi Outdoor Unit Split-Type Air Conditioner MUZ-AP50VG

Create an account to install this asset package.

Maintenance Plans for Mitsubishi Outdoor Unit Split-Type Air Conditioner Model MUZ-AP50VG

Integrate maintenance plans directly into your work orders in MaintainX.

Compressor Winding Check

Check mark

Warning: Disconnect the connector between the compressor and the power module (IC700) before proceeding

Check mark

Ohmmeter zeroed before measurement

Check mark

Resistance measurement between BLK-WHT

Check mark

Resistance measurement between BLK-RED

Check mark

Resistance measurement between WHT-RED

Check mark

Judgement

Check mark

Sign off on the compressor winding check

Run this procedureArrow right

Open Phase Check

Check mark

Warning: Ensure the connector between the compressor and the power module (IC700) is disconnected before starting the procedure.

Check mark

Inverter activated and normal?

Check mark

Measure the voltage balance between the terminals. Expected range is 50 - 130 V.

Check mark

Operation method: Start cooling or heating operation by pressing EMERGENCY OPERATION switch on the indoor unit.

Check mark

Measurement point: Measure AC voltage between the lead wires at 3 points.

Check mark

Voltage between BLK (U)-WHT (V)

Check mark

Voltage between BLK (U)-RED (W)

Check mark

Voltage between WHT(V)-RED (W)

Check mark

Note: 1. Output voltage varies according to power supply voltage. 2. Measure the voltage by analog type tester. 3. During this check, LED of the inverter P.C. board blinks 9 times.

Run this procedureArrow right

Thermistor Removal

Check mark

Remove the cabinet and panels. (Refer to section 1.)

Check mark

Disconnect the lead wire to the reactor and the following connectors:

Check mark

Inverter P.C. board

Check mark

Pull out the discharge temperature thermistor from its holder.

Check mark

Pull out the defrost thermistor from its holder.

Check mark

Pull out the outdoor heat exchanger temperature thermistor from its holder.

Check mark

Pull out the ambient temperature thermistor from its holder.

Check mark

Sign off on the thermistor removal

Run this procedureArrow right

Cabinet Removal

Check mark

Remove the screws of the service panel

Check mark

Remove the screws of the top panel

Check mark

Remove the screw of the valve cover

Check mark

Remove the service panel

Check mark

Remove the top panel

Check mark

Remove the valve cover

Check mark

Disconnect the power supply and indoor/outdoor connecting wire

Check mark

Remove the screws of the cabinet

Check mark

Remove the cabinet

Run this procedureArrow right

Outdoor Fan Motor Removal

Check mark

Section 1: Cabinet and Panels Removal

Check mark

Cabinet and panels removed

Check mark

Section 2: Disconnecting Connectors

Check mark

Disconnect the following connectors

Check mark

Propeller fan nut removed

Check mark

Propeller fan removed

Check mark

Screws fixing the fan motor removed

Check mark

Fan motor removed

Run this procedureArrow right
