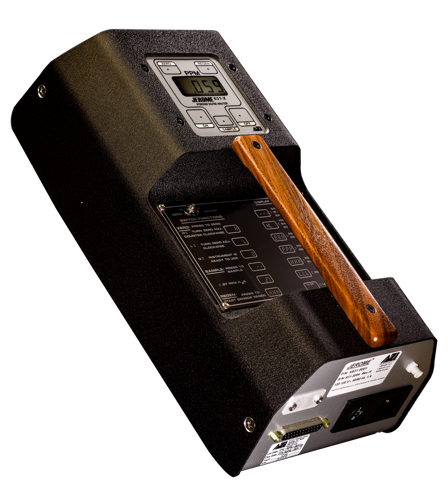

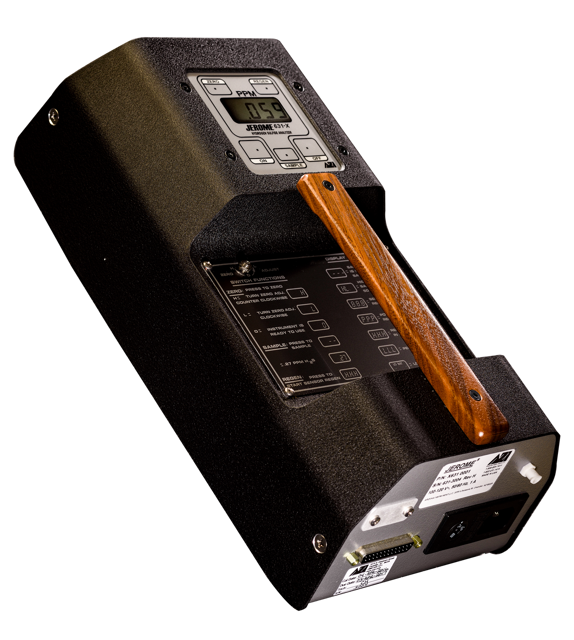

Ametek Hydrogen Sulfide Analyser Jerome 631

Push the old fritware filter disc out of the intake with your trimmer tool

Avoid touching the new fritware disc with fingers. Use tweezers to insert the new fritware

Use the blunt end of the trimmer tool to seat the fritware disc firmly against the inner ledge of the intake

Warning: Calibration requires a controlled environment, gas source, and computer software available only at the factory or authorized repair/calibration facility

Hydrogen Sulfide Analyser has been factory calibrated using laboratory equipment containing NIST traceable permeation tubes

Calibration system ensures stability of the calibration gas source

Calibration system eliminates any pressure in the calibration gas stream

Calibration system controls the temperature of the calibration environment

Sign off on the Hydrogen Sulfide Analyser Factory Calibration

Connect the AC power cord between the 631-X power receptacle and an AC power source

Complete battery recharging takes 14 hours

The 631-X contains a trickle charger so it may be continually plugged into an AC power source without damaging the battery pack

The battery pack may be charged outside the instrument with an optional AZI IDC Battery Charger

Check the calibration of the asset every 1 Month

Sign off on the battery charging

Remove the two (2) side screws from the intake end of the instrument and open the case lid

Disconnect the battery connector from the board

Loosen the two (2) captive screws holding the battery bracket and remove the bracket

Remove the old battery pack and replace with a new battery pack

Replace the battery bracket and tighten the captive screws

Connect the new battery connector to the board

Close the case and replace the two (2) side screws

Power OFF and power cord unplugged

Two side screws removed from the intake end of the instrument and case opened

Tygon tubing disconnected from both ends of the filters and old filters discarded

New filters connected to the Tygon tubing, ensuring all straight hose barbs point toward the intake/pump corner of the case and elbow hose barbs point toward the sensor housing

Tygon pushed as far as it will go onto the filter fittings

Filters pushed into the mounting clips

Any crimps or twists in the tubing removed and tubing connections secured. Tubing replaced if it has deteriorated due to heat and/or age

Case closed and screws replaced

All filters disposed of in accordance with state and federal environmental regulations
