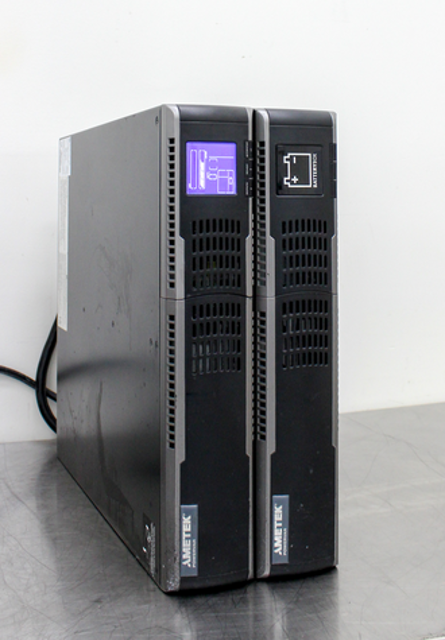

Ametek External Battery Cabinet 17201-01R

Warning: Only trained personnel should perform this procedure

Select the storage temperature range

If storage temperature is < 77°F (25°C), charge batteries every four months. If >= 77°F (25°C), charge every two months.

Enter the current temperature of the storage area

UPS connected to an appropriate power source?

Allow the batteries to charge for about five hours

Enter the date recharging was performed

CAUTION: Servicing of batteries should be performed or supervised by personnel knowledgeable about batteries and the required precautions.

WARNING: A damaged battery may leak electrolyte that can be dangerous in contact with skin and cause irritation to the eyes.

WARNING: Do not dispose of batteries in a fire. The batteries may explode.

WARNING: Do not open or damage the battery cases. Released electrolyte is harmful to the skin and eyes and may be toxic.

WARNING: A battery can present a risk of electrical shock and high short-circuit current.

Remove the left side of the front cover

Remove the four screws securing the battery retention plate

Disconnect the battery connectors

Warning: Do not use scouring powder or plastic dissolving solutions to clean the UPS

Warning: Do not allow liquid to get inside the UPS

Air vents on the UPS are not obstructed

Dust removed from the air vents with a vacuum cleaner

Outside of the UPS housing cleaned with a dry or slightly damp cloth
