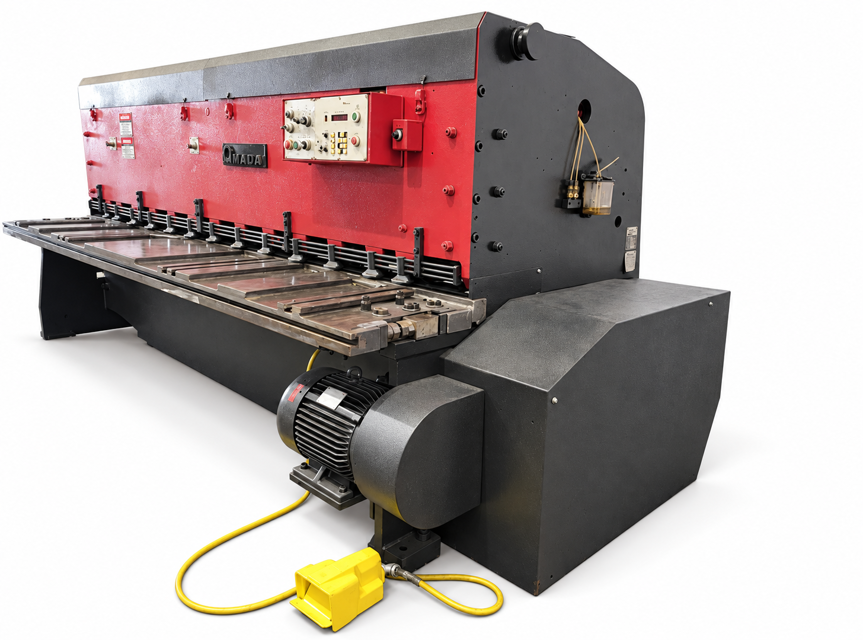

Amada Mechanical Power Squaring Shear M-2060

Amada Mechanical Power Squaring Shear M-2060

Create an account to install this asset package.

Maintenance Plans for Amada Mechanical Power Squaring Shear Model M-2060

Integrate maintenance plans directly into your work orders in MaintainX.

Blade Clearance Adjustment

Check mark

Preparation

Check mark

Remove the finger protector

Check mark

Turn the circuit breaker ON

Check mark

Turn the POWER ON/OFF switch ON

Check mark

Press the DRIVE button

Check mark

Set the mode switch

Check mark

Blade Overlap Adjustment

Check mark

Press the foot switch to lower the ram until the left end of the upper blade overlaps approximately 30 mm with the lower blade

Check mark

Ensure blades do not jam with each other

Run this procedureArrow right

Backgauge Parallelism Adjustment

Check mark

Pre-Adjustment Steps

Check mark

Move the backgauge to display 50 mm (or 2.00 in) on the CUTTING WIDTH display

Check mark

Butt a 1.6 mm thick test piece against the left, middle, and right of the backgauge and cut the test piece

Check mark

Measure the widths of the three cut-off pieces

Check mark

Adjustment Steps

Check mark

Is the sheet sheared at the left of the backgauge wider than the one at the right?

Check mark

If Left Side is Wider

Check mark

Turn the circuit breaker to OFF

Check mark

Remove the connecting rod cover from the backgauge

Run this procedureArrow right

Beam Light Adjustment

Check mark

Initial Setup

Check mark

Move the backgauge to an optional cutting width (e.g., 50 mm)

Check mark

Turn the beam light on

Check mark

Alignment Check

Check mark

Butt a straightedge against the backgauge and check alignment at 50 mm point

Check mark

Is the 50 mm point aligned with the beam line?

Check mark

Adjustment

Check mark

Loosen the bolts holding the bulb holder

Check mark

Adjust the beam light position by moving the holder back and forth

Run this procedureArrow right

Ram Stop Position Adjustment

Check mark

Preparation

Check mark

Remove the cover from the electromagnetic clutch located on the left side frame of the machine.

Check mark

Cam Position Check

Check mark

Check the brake cam angle (α)

Check mark

Check the clutch cam angle (β)

Check mark

Adjustment

Check mark

Does the ram stop after TDC?

Check mark

Adjust the clutch cam angle (β)

Check mark

Brake Cam Adjustment

Run this procedureArrow right

Lower Blade Height Adjustment

Check mark

Initial Setup

Check mark

Remove the drive unit cover [Photo 34]

Check mark

Rotate the main gear in the INCH mode until the through-hole in the main gear is aligned with the jack bolt [Photo 35]

Check mark

Adjustment Process

Check mark

Loosen the lock nuts of the table jack bolts, and loosen the jack bolts [Photo 36]

Check mark

Loosen the mounting bolts which hold the lower frame onto the left and right frames [Photo 37]

Check mark

Loosen the lock bolts and adjust the jack bolts on the lower frame so that the lower blade is flush with the upper surface of the table

Check mark

Turn the table jack bolts until their bolt heads firmly contact the lower surface of the table

Check mark

Finalization

Run this procedureArrow right
