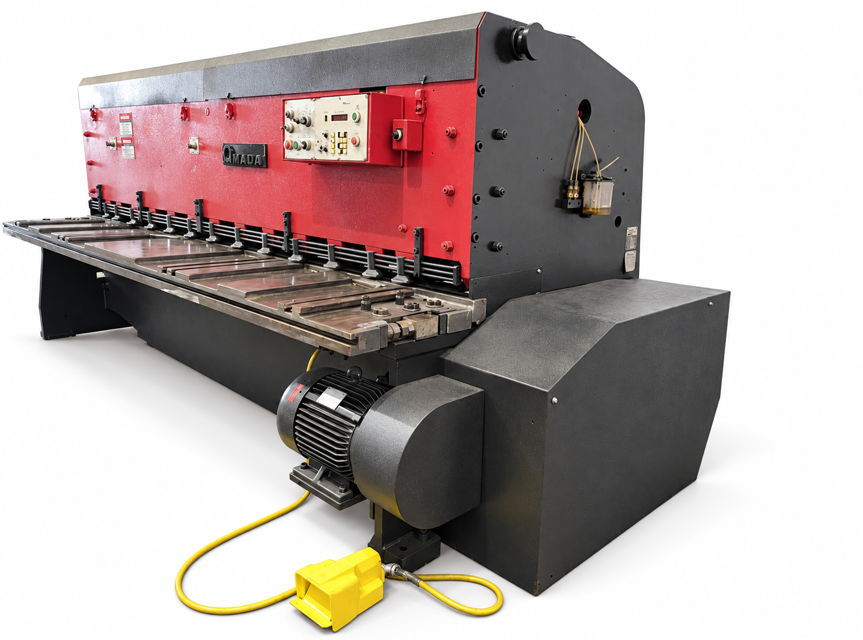

Amada Mechanical Power Squaring Shear M-4060

Move the backgauge to display 50 mm (or 2.00 in) on the CUTTING WIDTH display

Butt a 1.6 mm thick test piece against the left, middle, and right of the backgauge and cut the test piece

Measure the width of the left cut-off piece

Measure the width of the middle cut-off piece

Measure the width of the right cut-off piece

Is the left cut-off piece wider than the right?

Move the backgauge to an optional cutting width (e.g., 50 mm)

Butt a straightedge against the backgauge and check alignment at 50 mm point

Is the 50 mm point aligned with the beam line?

Loosen the bolts holding the bulb holder

Describe the adjustment made to the beam light position

Remove the drive unit cover [Photo 34]

Rotate the main gear in the INCH mode until the through-hole in the main gear is aligned with the jack bolt [Photo 35]

Loosen the lock nuts of the table jack bolts, and loosen the jack bolts [Photo 36]

Loosen the mounting bolts which hold the lower frame onto the left and right frames [Photo 37]

Loosen the lock bolts and adjust the jack bolts on the lower frame so that the lower blade is flush with the upper surface of the table

Turn the table jack bolts until their bolt heads firmly contact the lower surface of the table

Check the oil level in the lubrication oil pump

Add oil to the lubrication oil pump if necessary

Push the pump lever three to four times

Add oil to the threads of the carriage through the upper hole using an oiler

Check the hydraulic oil level for the holddowns

Check the upper and lower blades for wear or breakage

Turn the POWER ON/OFF switch ON

Press the foot switch to lower the ram until the left end of the upper blade overlaps approximately 30 mm (1.2 in) with the lower blade

Ensure blades do not jam with each other
